K-SERIES LONG-DISTANCE MICROSCOPES:

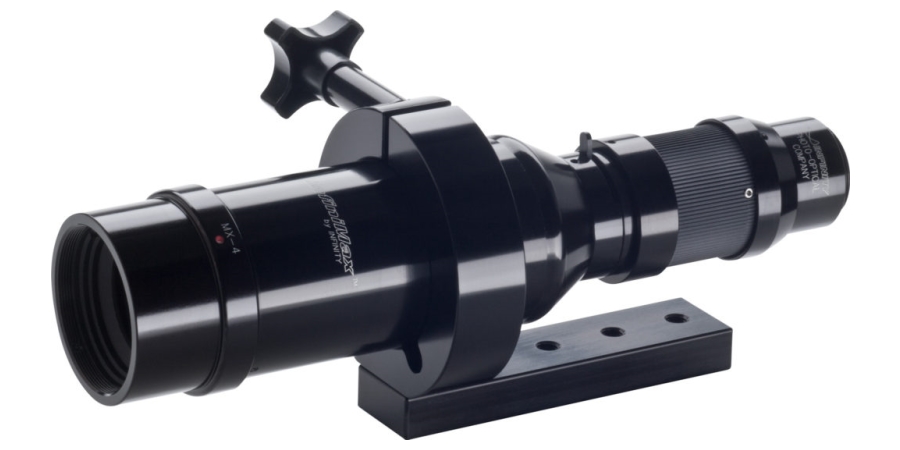

Model KX InfiniMax™

KX InfiniMax
LONG-DISTANCE MICROSCOPES

Suggested List Prices
Effective: October 01, 2024

ACCESSORIES

INSTRUCTIONS

PRICE GUIDE

Any questions on products and pricing please contact Infinity

The KX InfiniMax incorporates a unique “balanced” ConstantMag™ system that compensates the increase in magnification caused by closer focusing by a reciprocal counter-reduction in magnification within the internal focusing system itself. Consequently, KX InfiniMax provides magnification stability heretofore typically obtained only from telecentric lenses, yet with resolution second only to Infinity’s own Model K2 long-distance microscope. Due to its internal focusing, the KX InfiniMax’s outer dimensions remain exactly as originally configured. The KX InfiniMax is therefore ideally suited for high-resolution gauging/measuring applications.

Six MX-Series objectives attach to the KX InfiniMax Main Body to obtain six basic magnification choices. Ranging the KX InfiniMax’s focus provides virtually the same magnification regardless of working distance.

Directly, the KX InfiniMax can be used with video formats up to 2/3-in. With the Large Format Amplifier (LFA), the KX InfiniMax can be used with video and photo formats up to 24x36mm (35mm SLR cameras or very large video formats).

It is easy to order a KX InfiniMax suited to your needs. Simply choose the KX InfiniMax Main Body, Objectives and applicable accessories to configure a complete KX InfiniMax system.

KX InfiniMax Main Body

Image	SKU	Name	Price	Buy
	860160	KX InfiniMax Main Body with Variable Iris Diaphragm	$3,275.00	KX InfiniMax Main Body with Variable Iris Diaphragm quantity

MX-Series Objectives

SKU	Name	Price	Buy
860170	MX-LR (0.11x-0.58x; 3000-530mm WD)	$595.00	MX-LR (0.11x-0.58x; 3000-530mm WD) quantity
860171	MX-1 (0.56x-0.98x; 590-303mm WD)	$595.00	MX-1 (0.56x-0.98x; 590-303mm WD) quantity
860172	MX-2 (0.85x-1.28x; 383-233mm WD)	$595.00	MX-2 (0.85x-1.28x; 383-233mm WD) quantity
860173	MX-3 (1.16x-1.60x; 254-170mm WD)	$675.00	MX-3 (1.16x-1.60x; 254-170mm WD) quantity
860174	MX-4 (1.42x-1.83x; 223-160mm WD)	$595.00	MX-4 (1.42x-1.83x; 223-160mm WD) quantity
860175	MX-5 (1.83x-2.13x; 168-127mm WD)	$595.00	MX-5 (1.83x-2.13x; 168-127mm WD) quantity
860176	MX-6 (CONSTANT 4.27x; 75-60mm WD)	$595.00	MX-6 (CONSTANT 4.27x; 75-60mm WD) quantity

Amplifiers

SKU	Name	Price	Buy
220568	LDL Tube/2x (lockable for camera orientation)	$360.00	LDL Tube/2x (lockable for camera orientation) quantity
690568	DL Tube/2x (video only)	$255.00	DL Tube/2x (video only) quantity
860180	Large Format Amplifier (LFA). The LFA provides coverage for large format video and photo cameras up to and including the 24mm x 36mm (35mm SLR) Format. The LFA is the most convenient way to adapt large format cameras to the KC VideoMax.	$775.00	Large Format Amplifier (LFA). The LFA provides coverage for large format video and photo cameras up to and including the 24mm x 36mm (35mm SLR) Format. The LFA is the most convenient way to adapt large format cameras to the KC VideoMax. quantity

Accessories

SKU	Name	Price	Buy
770170	Large Mounting Clamp	$110.00	Large Mounting Clamp quantity
770171	Mounting Bar	$110.00	Mounting Bar quantity
770507	C-Mount Adapter	$69.00	C-Mount Adapter quantity
770509	Orientable/Separable C-Mount Video Adapter	$550.00	Orientable/Separable C-Mount Video Adapter quantity
770510	Spare C-Mount Top for 770509	$255.00	Spare C-Mount Top for 770509 quantity
770511	Rotatable/Lockable C-mount	$170.00	Rotatable/Lockable C-mount quantity
770565	T2 Adapter — Canon EOS	$35.00	T2 Adapter — Canon EOS quantity
770566	T2 Adapter - Olympus	$35.00	T2 Adapter - Olympus quantity
770568	T2 Adapter — Nikon F Mount	$35.00	T2 Adapter — Nikon F Mount quantity
860190	M49 Filter Holder. Permits use of M49 photo-type filters on K1 CentriMax MX-1 to MX-5 Objectives.	$90.00	M49 Filter Holder. Permits use of M49 photo-type filters on K1 CentriMax MX-1 to MX-5 Objectives. quantity
860200	Delrin Spacer. (Used with Large Mounting Clamp to Step-up from C-size Tube to T-size Tube)	$45.00	Delrin Spacer. (Used with Large Mounting Clamp to Step-up from C-size Tube to T-size Tube) quantity
990170	Small Mounting Clamp (useful to secure around objective section)	$110.00	Small Mounting Clamp (useful to secure around objective section) quantity

Prices and specifications are FOB Centennial, CO and are subject to change without notice.
Model KX InfiniMax is a trademark of INFINITY PHOTO-OPTICAL COMPANY.
U.S. Patent 5,452,133. Additional U.S. and foreign patents pending and may apply.
