K-SERIES LONG-DISTANCE MICROSCOPES:

Model KC VideoMax™

KC VideoMax
LONG-DISTANCE MICROSCOPE

Suggested List Prices
Effective: October 01, 2024

ACCESSORIES

INSTRUCTIONS

PRICE GUIDE

Any questions on products and pricing please contact Infinity

The New KC VideoMax Main Body includes Mounting Clamp and 12mm Spacer which can be exchanged with optional Variable Iris Diaphragm (see below). This new model incorporates an Internal Focusing Ring Lock. The KC VideoMax is itself a C-mount system and does not require any further adaptation unless large format accessories are utilized (ST and SD models).

Main Body

SKU	Name	Price	Buy
991260	KC VideoMax (S) Main Body, focusing directly from infinity to 965mm with S Front, Small Mounting Clamp	$2,830.00	KC VideoMax (S) Main Body, focusing directly from infinity to 965mm with S Front, Small Mounting Clamp quantity
991280	KC VideoMax (ST) Main Body with S Front, Larger version with T-size tubes, Large Mounting Clamp, and Variable Iris Diaphragm. Does not include camera mount adapter	$3,185.00	KC VideoMax (ST) Main Body with S Front, Larger version with T-size tubes, Large Mounting Clamp, and Variable Iris Diaphragm. Does not include camera mount adapter quantity
991290	KC VideoMax (SD) Dual Port Main Body with S Front, with Mirror Diverter, Delrin Tripod Spacer, and Variable Iris Diaphragm. Does not include camera mount adapter (see below).	$4,795.00	KC VideoMax (SD) Dual Port Main Body with S Front, with Mirror Diverter, Delrin Tripod Spacer, and Variable Iris Diaphragm. Does not include camera mount adapter (see below). quantity

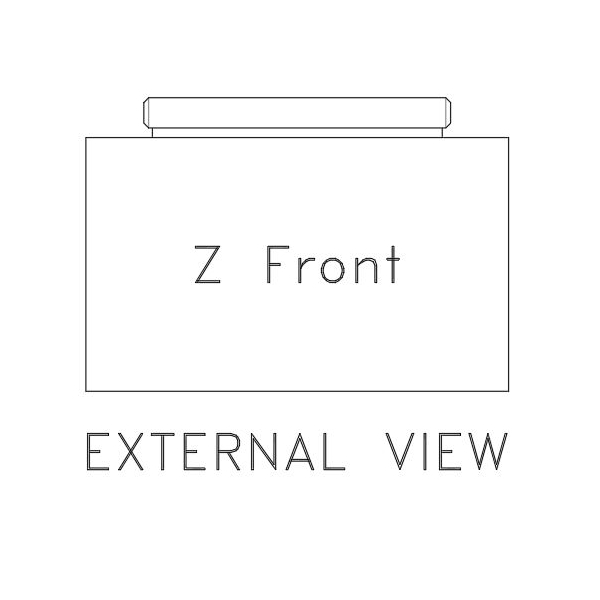

Z Front

Image	SKU	Name	Price	Buy
	990600	Replaces S Front for use with Zeiss ICS Objectives	$630.00	Replaces S Front for use with Zeiss ICS Objectives quantity

Auxiliary Lens

Image	SKU	Name	Price	Buy
	991266	Auxiliary Lens. Allows KC VideoMax to focus from 940mm to 405mm	$199.00	Auxiliary Lens. Allows KC VideoMax to focus from 940mm to 405mm quantity

Amplifiers (C-mount Types—see Large Format Accessories for other formats)

SKU	Name	Price	Buy
690568	DL Tube/2x (video only)	$255.00	DL Tube/2x (video only) quantity
220568	LDL Tube/2x (lockable for camera orientation)	$360.00	LDL Tube/2x (lockable for camera orientation) quantity
220569	LDS 4x Power Module Amplifier (lockable for camera orientation)	$435.00	LDS 4x Power Module Amplifier (lockable for camera orientation) quantity

Minifiers

Image	SKU	Name	Price	Buy

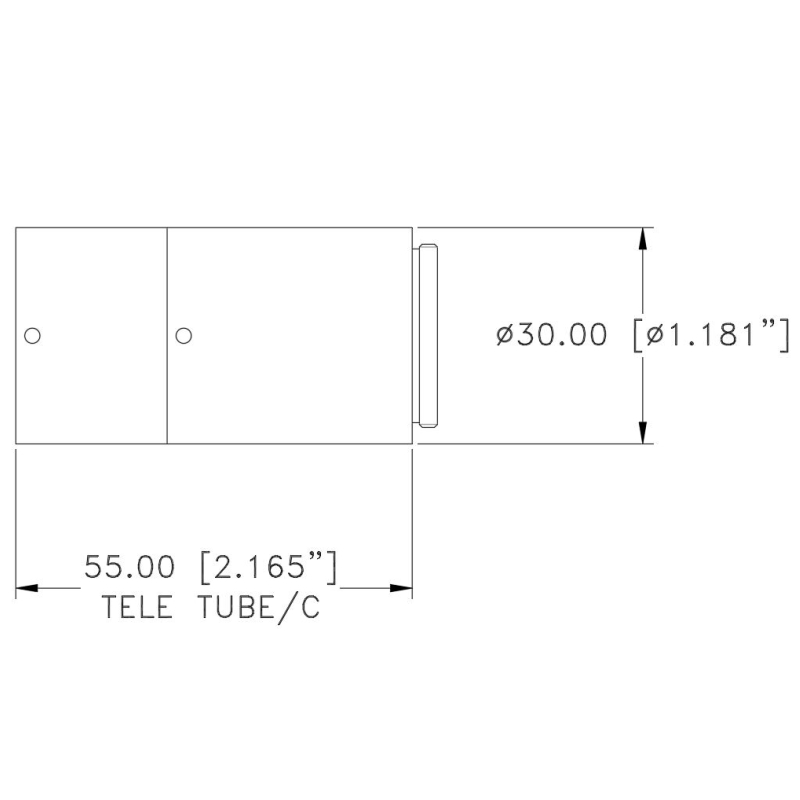

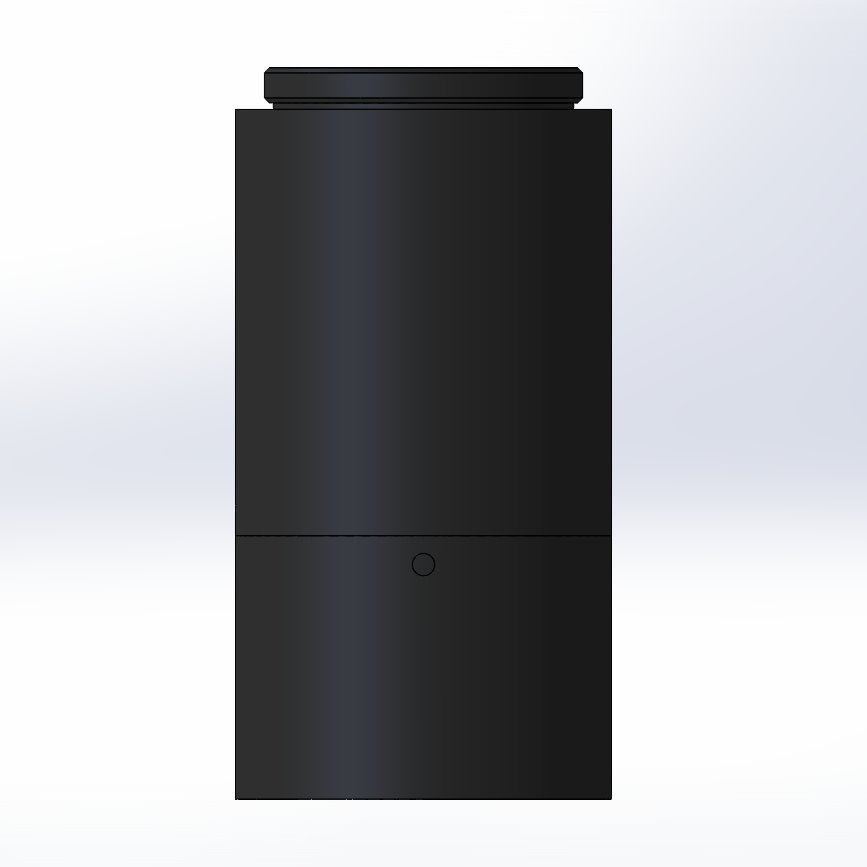

	991135	Tele-Tube/C (0.5x)	$499.00	Tele-Tube/C (0.5x) quantity

IF-Series Objectives (infinity-corrected)

SKU	Name	Price	Buy
991102	IF-1 Objective (0.5x; 390mm W.D.)	$425.00	IF-1 Objective (0.5x; 390mm W.D.) quantity
991104	IF-2 Objective (0.66x; 295mm W.D.)	$425.00	IF-2 Objective (0.66x; 295mm W.D.) quantity
991106	IF-3 Objective (1.0x; 195mm W.D.)	$425.00	IF-3 Objective (1.0x; 195mm W.D.) quantity
991107	IF-3.5 Objective (2.0x; 95mm W.D.)	$425.00	IF-3.5 Objective (2.0x; 95mm W.D.) quantity
991108	IF-4 Objective (2.66x; 70mm W.D.)	$425.00	IF-4 Objective (2.66x; 70mm W.D.) quantity

Achrovid™ Nelsonian™ Objectives (infinity-corrected/f=200mm)

SKU	Name	Price	Buy
210301	Achrovid 2x/Nelsonian® 0.054/ W.D. 37mm	$525.00	Achrovid 2x/Nelsonian® 0.054/ W.D. 37mm quantity
210302	Achrovid 2.5x/Nelsonian® 0.064/ W.D. 37mm	$525.00	Achrovid 2.5x/Nelsonian® 0.064/ W.D. 37mm quantity
210303	Achrovid 3.3x/Nelsonian® 0.077/ W.D. 37mm	$525.00	Achrovid 3.3x/Nelsonian® 0.077/ W.D. 37mm quantity
210304	Achrovid 4x/Nelsonian® 0.09/ W.D. 37mm	$525.00	Achrovid 4x/Nelsonian® 0.09/ W.D. 37mm quantity
210305	Achrovid 5x/Nelsonian® 0.12/ W.D. 37mm	$525.00	Achrovid 5x/Nelsonian® 0.12/ W.D. 37mm quantity
210306	Achrovid 10x/Nelsonian® 0.21/ W.D. 17.50mm	$630.00	Achrovid 10x/Nelsonian® 0.21/ W.D. 17.50mm quantity

Coaxial Illumination Systems and Accessories

SKU	Name	Price	Buy
991158	Basic Coaxial Illuminator w/ Collector I (for use with low power objectives)	$1,150.00	Basic Coaxial Illuminator w/ Collector I (for use with low power objectives) quantity
991159	Basic Coaxial Illuminator w/ Collector II (for use with objectives 10x and higher)	$1,150.00	Basic Coaxial Illuminator w/ Collector II (for use with objectives 10x and higher) quantity
991167	Polarizing Filter and Retainer	$275.00	Polarizing Filter and Retainer quantity
991170	Collector I (to convert units that have Collector II)	$310.00	Collector I (to convert units that have Collector II) quantity
991172	Collector II (to convert units that have Collector I)	$310.00	Collector II (to convert units that have Collector I) quantity
992258	Basic Coaxial Illuminator w/ LED Flashlight	$1,230.00	Basic Coaxial Illuminator w/ LED Flashlight quantity
992259	Basic Coaxial Illuminator Right Angle w/ LED Flashlight	$1,890.00	Basic Coaxial Illuminator Right Angle w/ LED Flashlight quantity
992270	Collector for LED Flashlight (extra)	$310.00	Collector for LED Flashlight (extra) quantity
992271	LED Flashlight for Coaxial Illuminator	$40.00	LED Flashlight for Coaxial Illuminator quantity
992283	Right Angle Interface for Coaxial Illuminator. Converts Standard into RA Type	$715.00	Right Angle Interface for Coaxial Illuminator. Converts Standard into RA Type quantity

General Accessories

SKU	Name	Price	Buy

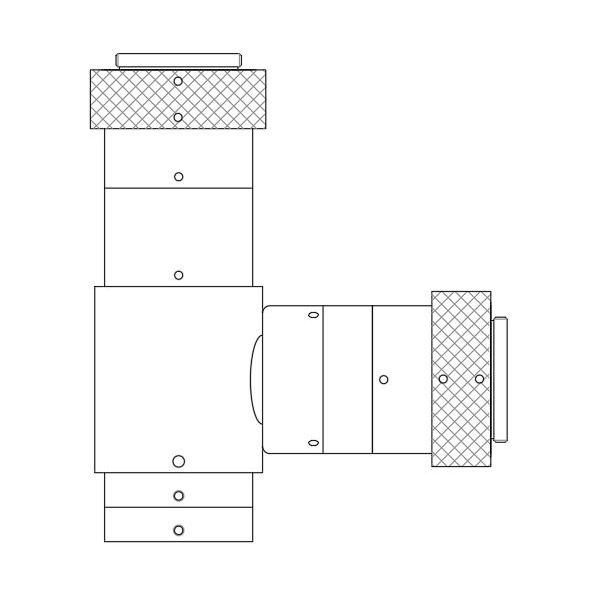

770514	Beam-Splitter C-mount (50/50) for two cameras. Replaces C96.	$775.00	Beam-Splitter C-mount (50/50) for two cameras. Replaces C96. quantity
770516	Visual Side Port Eyepiece Holder	$385.00	Visual Side Port Eyepiece Holder quantity

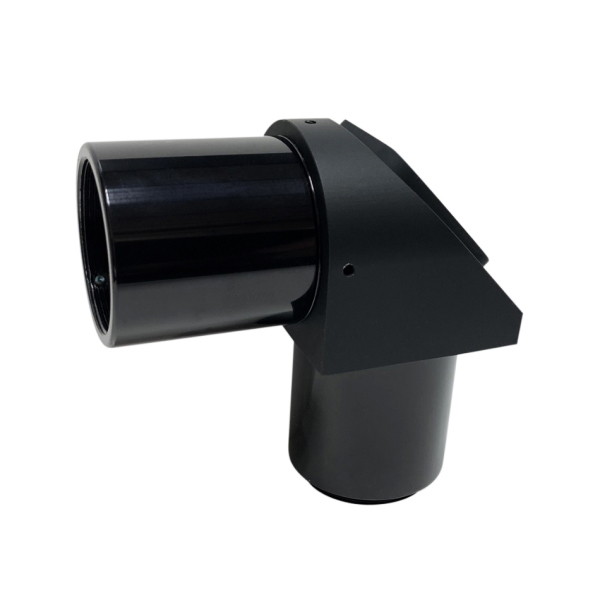

770517	Right-Angle Tube. Replaces C-96 Tube to bend KC 90° relative to camera.	$905.00	Right-Angle Tube. Replaces C-96 Tube to bend KC 90° relative to camera. quantity
990170	Small Mounting Clamp (useful to secure around objective section)	$110.00	Small Mounting Clamp (useful to secure around objective section) quantity
991125	RMS Objective Adapter (use infinity-corrected type)	$90.00	RMS Objective Adapter (use infinity-corrected type) quantity
991130	Achrovid Objective Adapter (M26 thread—also suitable for Mitutoyo)	$90.00	Achrovid Objective Adapter (M26 thread—also suitable for Mitutoyo) quantity

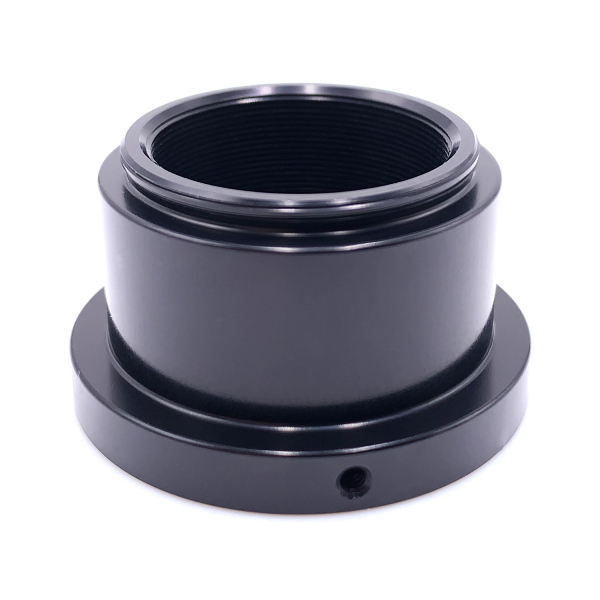

991131	Nikon CFI60 Objective Adapter (M25 thread)	$90.00	Nikon CFI60 Objective Adapter (M25 thread) quantity
991152	Filter Holder/Retainer for 25mm Æ scientific grade filters	$103.00	Filter Holder/Retainer for 25mm Æ scientific grade filters quantity
991155	Small Variable Iris Diaphragm	$255.00	Small Variable Iris Diaphragm quantity

Large Format Accessories (all Amplifiers except LFA require Step-up Adapters on Model KC VideoMax)

SKU	Name	Price	Buy
312517	5x Eyepiece (multi-coated)	$95.00	5x Eyepiece (multi-coated) quantity
312518	10x Widefield Eyepiece with High Eyepoint	$115.00	10x Widefield Eyepiece with High Eyepoint quantity
770170	Large Mounting Clamp	$110.00	Large Mounting Clamp quantity
770171	Mounting Bar	$110.00	Mounting Bar quantity
770507	C-Mount Adapter	$69.00	C-Mount Adapter quantity
770509	Orientable/Separable C-Mount Video Adapter	$550.00	Orientable/Separable C-Mount Video Adapter quantity
770510	Spare C-Mount Top for 770509	$255.00	Spare C-Mount Top for 770509 quantity

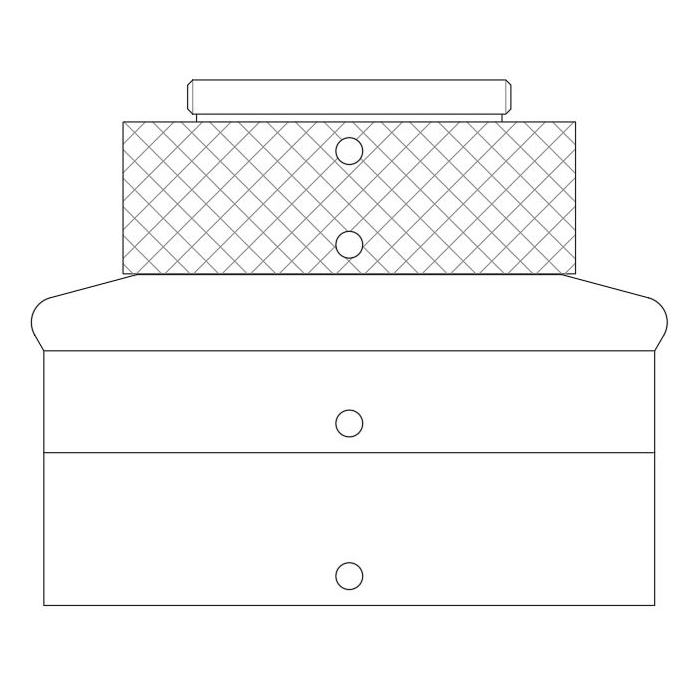

770511	Rotatable/Lockable C-mount	$170.00	Rotatable/Lockable C-mount quantity
770530	T30 Tube (30mm spacer)	$73.00	T30 Tube (30mm spacer) quantity
770565	T2 Adapter — Canon EOS	$35.00	T2 Adapter — Canon EOS quantity
770566	T2 Adapter - Olympus	$35.00	T2 Adapter - Olympus quantity
770568	T2 Adapter — Nikon F Mount	$35.00	T2 Adapter — Nikon F Mount quantity
770571	ArriFlex PL Mount Adapter (with locking screws)	$195.00	ArriFlex PL Mount Adapter (with locking screws) quantity
770572	PL Mount Cap	$50.00	PL Mount Cap quantity
770662	M62 Eyepiece Holder Tube (Does not include Eyepiece)	$120.00	M62 Eyepiece Holder Tube (Does not include Eyepiece) quantity
771054	UNIPAR-Vid (0.2x factor w/10x E.P.–video only)	$645.00	UNIPAR-Vid (0.2x factor w/10x E.P.–video only) quantity

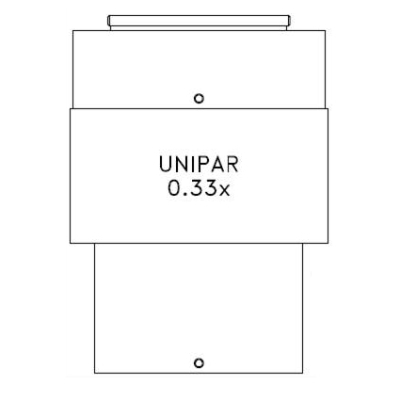

771055	UNIPAR/T30 Adapter with 0.3x optical system. (must be used with eyepiece)	$640.00	UNIPAR/T30 Adapter with 0.3x optical system. (must be used with eyepiece) quantity
860180	Large Format Amplifier (LFA). The LFA provides coverage for large format video and photo cameras up to and including the 24mm x 36mm (35mm SLR) Format. The LFA is the most convenient way to adapt large format cameras to the KC VideoMax.	$775.00	Large Format Amplifier (LFA). The LFA provides coverage for large format video and photo cameras up to and including the 24mm x 36mm (35mm SLR) Format. The LFA is the most convenient way to adapt large format cameras to the KC VideoMax. quantity
860200	Delrin Spacer. (Used with Large Mounting Clamp to Step-up from C-size Tube to T-size Tube)	$45.00	Delrin Spacer. (Used with Large Mounting Clamp to Step-up from C-size Tube to T-size Tube) quantity
890177	Mirror Diverter Package. Converts single-port K2 DistaMax or KC VideoMax into a dual-port.	$1,750.00	Mirror Diverter Package. Converts single-port K2 DistaMax or KC VideoMax into a dual-port. quantity

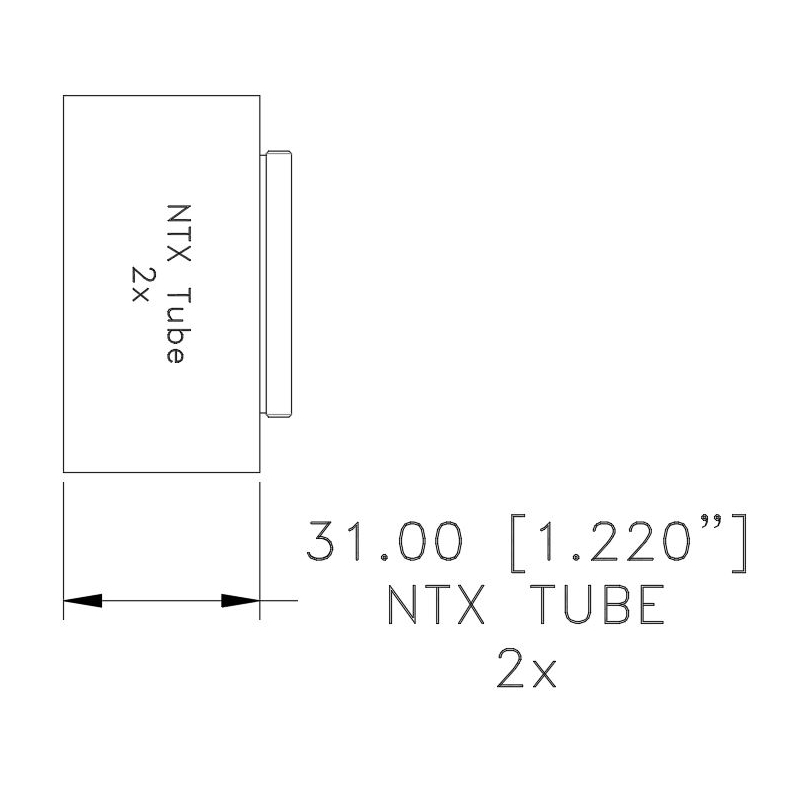

990223	NTX Tube 2x	$546.00	NTX Tube 2x quantity

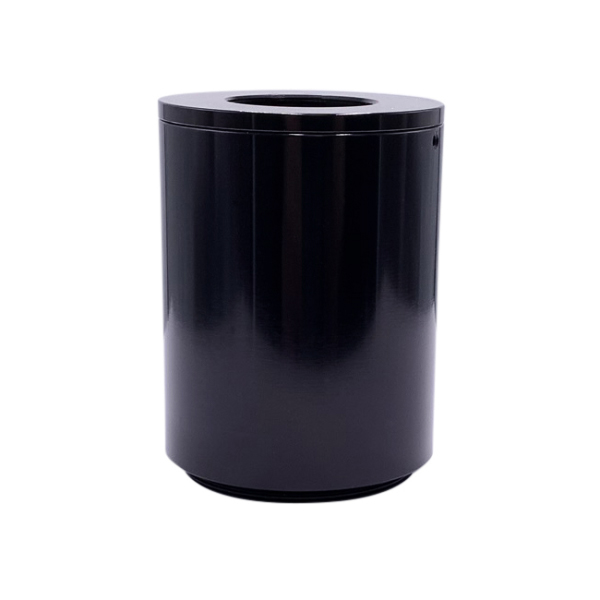

991259	Step-up adapter for KC VideoMax large format	$118.00	Step-up adapter for KC VideoMax large format quantity

Stereo Stand Adapters (Interface step-up adapter and camera mount)

SKU	Name	Price	Buy
691616	Adapter for Olympus Stereomicroscope Stands	$175.00	Adapter for Olympus Stereomicroscope Stands quantity
691618	Adapter for Nikon, Olympus, Edmund, Zeiss, and Leica Ø75.75mm Stands	$175.00	Adapter for Nikon, Olympus, Edmund, Zeiss, and Leica Ø75.75mm Stands quantity
691620	Adapter for Unitron Stereomicroscope Stands Ø81.80mm	$175.00	Adapter for Unitron Stereomicroscope Stands Ø81.80mm quantity
691622	Adapter for Meiji Stereomicroscope Stands Ø84mm	$175.00	Adapter for Meiji Stereomicroscope Stands Ø84mm quantity

R&D 100 Award-winner
Prices and specifications are FOB Centennial, CO and are subject to change without notice.
Model KC VideoMax, Achrovid and Nelsonian are trademarks of INFINITY PHOTO-OPTICAL COMPANY.
U.S. Patents 4,988,173 and 5,452,133. Additional U.S. and foreign patents may apply.
