K-SERIES LONG-DISTANCE MICROSCOPES:

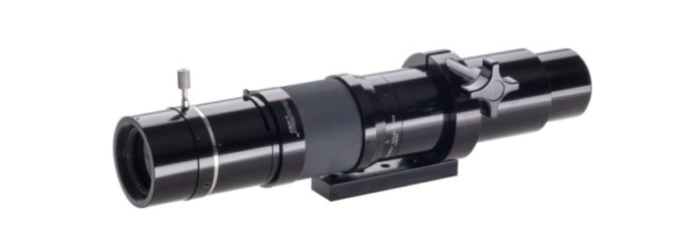

MODEL K2 DistaMax™

MODEL K2 DISTAMAX
LONG-DISTANCE MICROSCOPES

Suggested List Prices
Effective: October 01, 2024

ACCESSORIES

INSTRUCTIONS

PRICE GUIDE

Any questions on products and pricing please contact Infinity

Main Bodies

SKU	Name	Price	Buy
990477	Infinity Model K2 DistaMax Single-Port Main Body (1x factor), consisting of K2 DistaMax Focuser and all standard tubes and Mounting Clamp.	$7,200.00	Infinity Model K2 DistaMax Single-Port Main Body (1x factor), consisting of K2 DistaMax Focuser and all standard tubes and Mounting Clamp. quantity
990497	Infinity Model K2 DistaMax Dual-Port Main Body (1x factor), consisting of K2 DistaMax Focuser, Mirror Diverter, dual set of standard tubes and Delrin Spacer for ¼-in. – 20 mounting screw.	$8,880.00	Infinity Model K2 DistaMax Dual-Port Main Body (1x factor), consisting of K2 DistaMax Focuser, Mirror Diverter, dual set of standard tubes and Delrin Spacer for ¼-in. – 20 mounting screw. quantity
990498	Infinity Model K2 DistaMax Dual-Port Main Body (1x factor), consisting of K2 DistaMax Focuser, 50/50 Beamsplitter Cube, and dual set of standard tubes.	$8,880.00	Infinity Model K2 DistaMax Dual-Port Main Body (1x factor), consisting of K2 DistaMax Focuser, 50/50 Beamsplitter Cube, and dual set of standard tubes. quantity

ROBUSTO™ Main Bodies

SKU	Name	Price	Buy

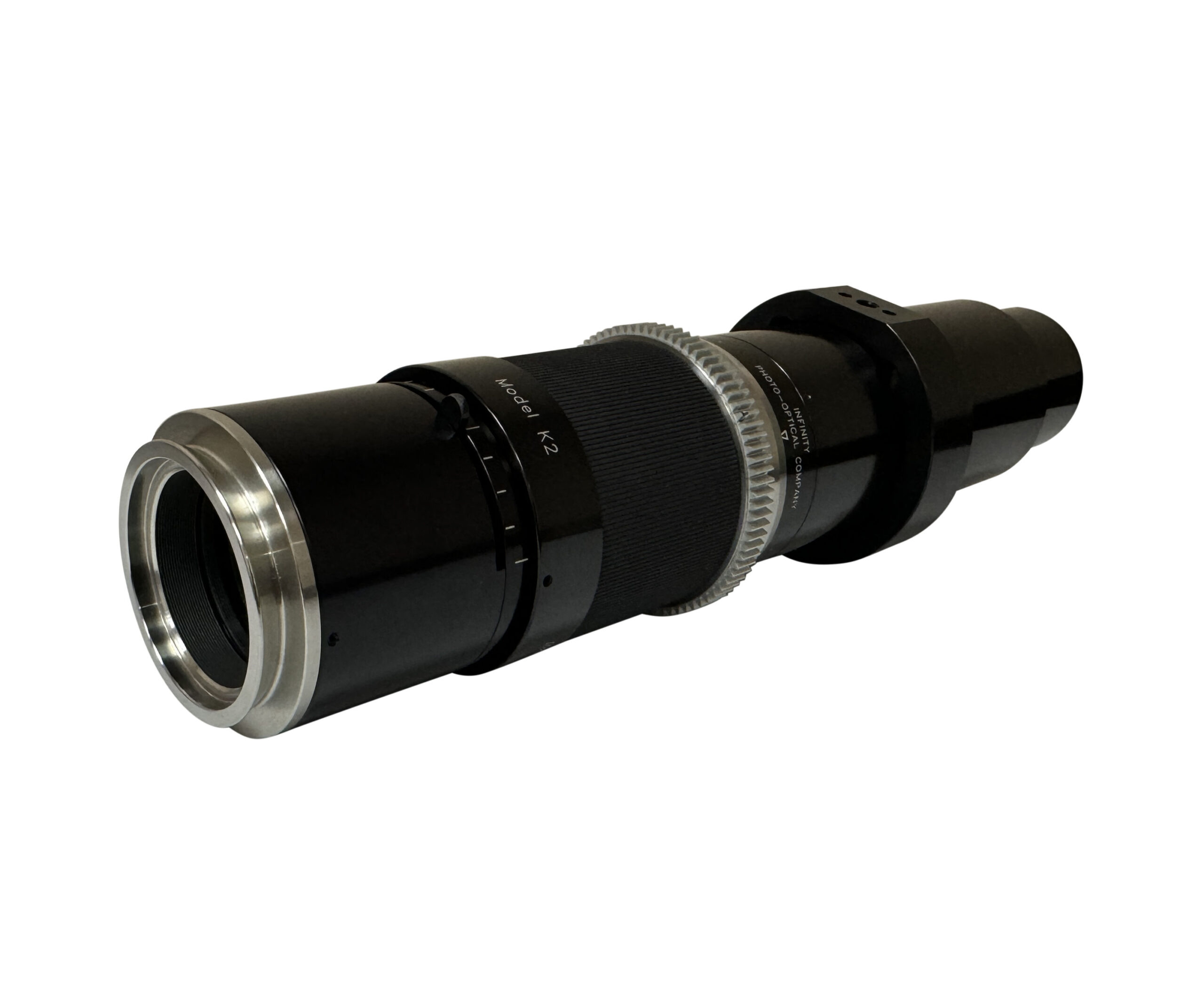

995477	Infinity Model K2 DistaMax ROBUSTO™ Type Single-Port Main Body (1x factor), consisting of K2 DistaMax Focuser and all standard tubes and Mounting Clamp.	$8,350.00	Infinity Model K2 DistaMax ROBUSTO™ Type Single-Port Main Body (1x factor), consisting of K2 DistaMax Focuser and all standard tubes and Mounting Clamp. quantity
995497	Infinity Model K2 DistaMax ROBUSTO™ Type Dual-Port Main Body (1x factor), consisting of K2 DistaMax Focuser, Mirror Diverter, dual set of standard tubes and Delrin Spacer for ¼-in. – 20 mounting screw.	$9,330.00	Infinity Model K2 DistaMax ROBUSTO™ Type Dual-Port Main Body (1x factor), consisting of K2 DistaMax Focuser, Mirror Diverter, dual set of standard tubes and Delrin Spacer for ¼-in. – 20 mounting screw. quantity
995498	Infinity Model K2 DistaMax ROBUSTO™ Type Dual-Port Main Body (1x factor), consisting of K2 DistaMax Focuser, 50/50 Beamsplitter Cube, and dual set of standard tubes.	$9,330.00	Infinity Model K2 DistaMax ROBUSTO™ Type Dual-Port Main Body (1x factor), consisting of K2 DistaMax Focuser, 50/50 Beamsplitter Cube, and dual set of standard tubes. quantity

CentriTel® Focuser

Image	SKU	Name	Price	Buy
	990501	CentriTel Focuser for DistaMax	$2,550.00	CentriTel Focuser for DistaMax quantity

CentriTel® ROBUSTO™ Type Focuser

Image	SKU	Name	Price	Buy
	995501	CentriTel ROBUSTO™ Type Focuser for DistaMax	$2,995.00	CentriTel ROBUSTO™ Type Focuser for DistaMax quantity

Amplifiers

SKU	Name	Price	Buy
990240	CF Tube (1.66x)	$550.00	CF Tube (1.66x) quantity
990223	NTX Tube 2x	$546.00	NTX Tube 2x quantity
690568	DL Tube/2x (video only)	$255.00	DL Tube/2x (video only) quantity
220568	LDL Tube/2x (lockable for camera orientation)	$360.00	LDL Tube/2x (lockable for camera orientation) quantity

K2 DistaMax Front Objectives

SKU	Name	Price	Buy
990208	NWE Objective (0.12-0.6x; Infinity to 675mm W.D.)	$855.00	NWE Objective (0.12-0.6x; Infinity to 675mm W.D.) quantity

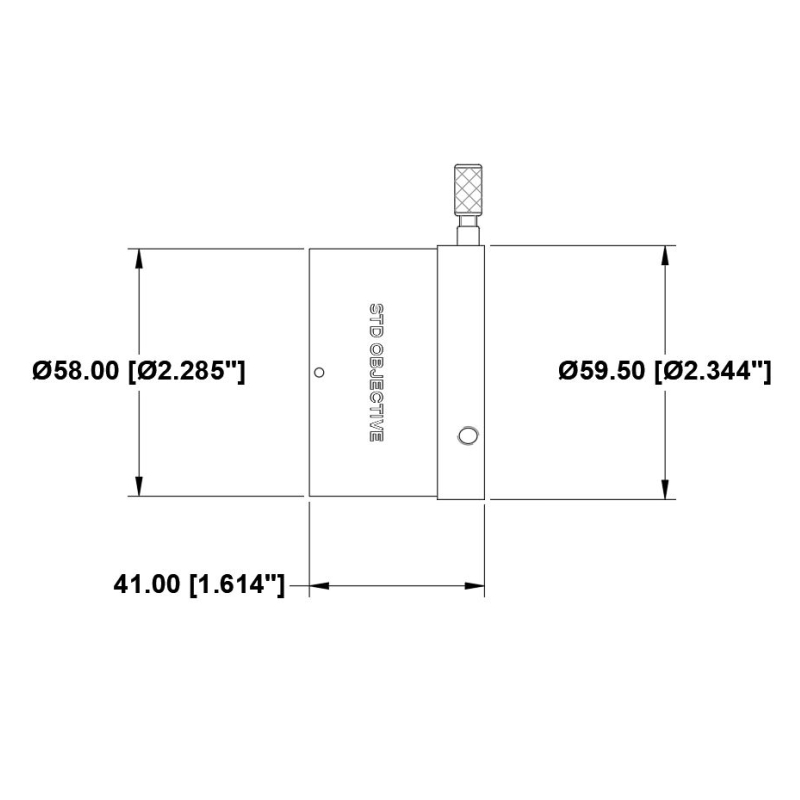

990210	Standard Objective (0.34x-1.10x; 946-370mm W.D.)	$855.00	Standard Objective (0.34x-1.10x; 946-370mm W.D.) quantity

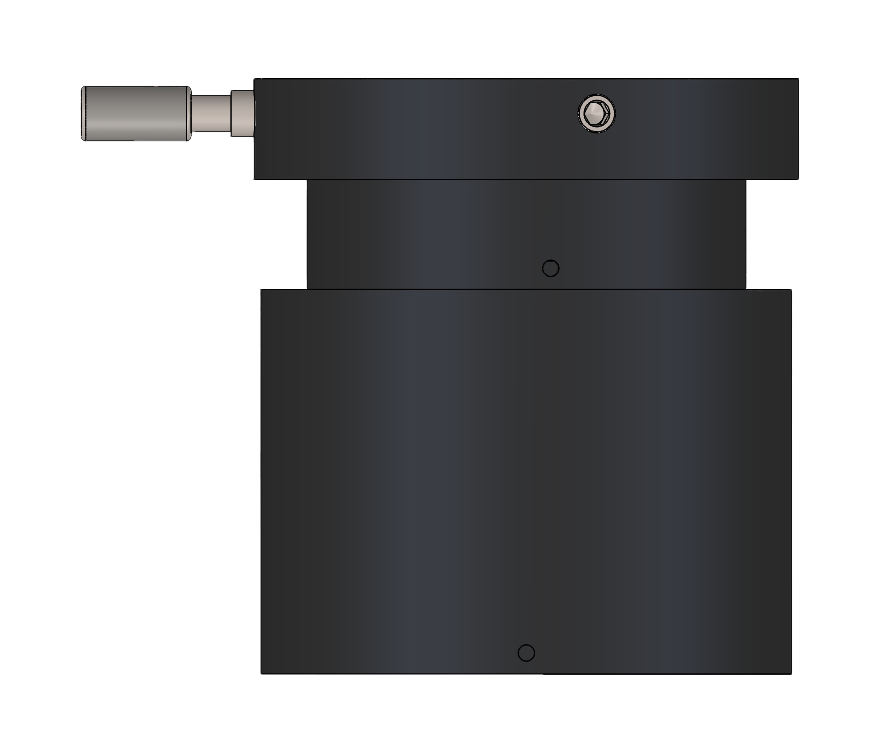

990212	CF-1 Objective (0.61x-1.28x; 530-215mm W.D.)	$855.00	CF-1 Objective (0.61x-1.28x; 530-215mm W.D.) quantity

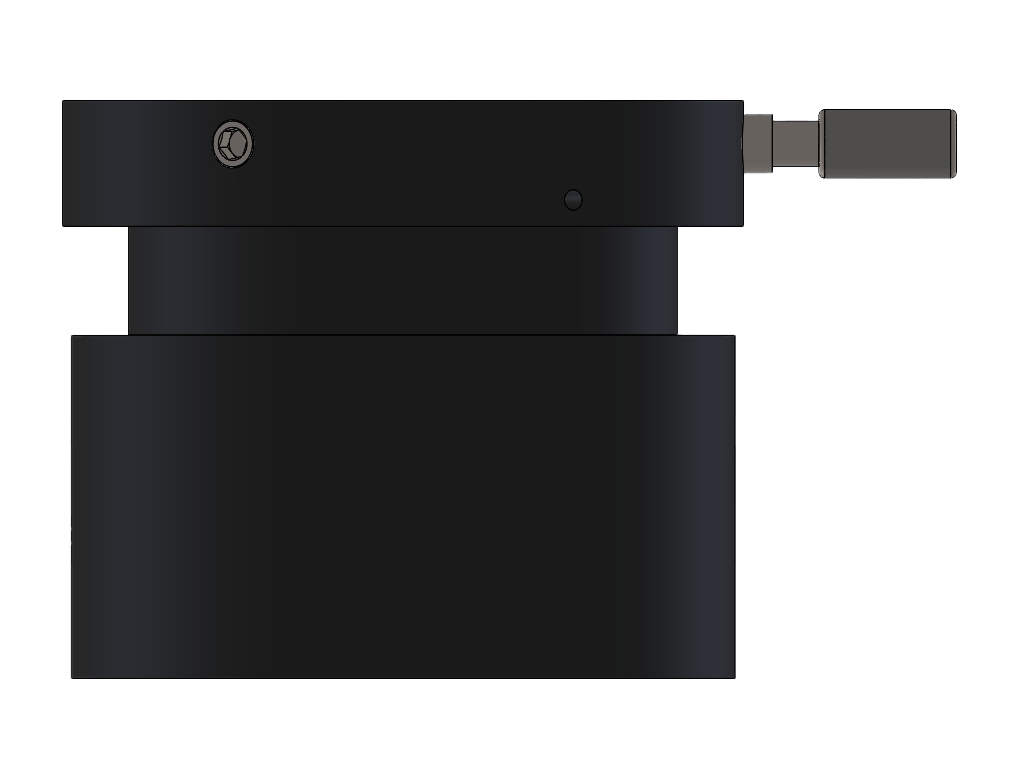

990213	CF-1/B Objective (0.80x-1.40x; 388-228mm W.D)	$855.00	CF-1/B Objective (0.80x-1.40x; 388-228mm W.D) quantity

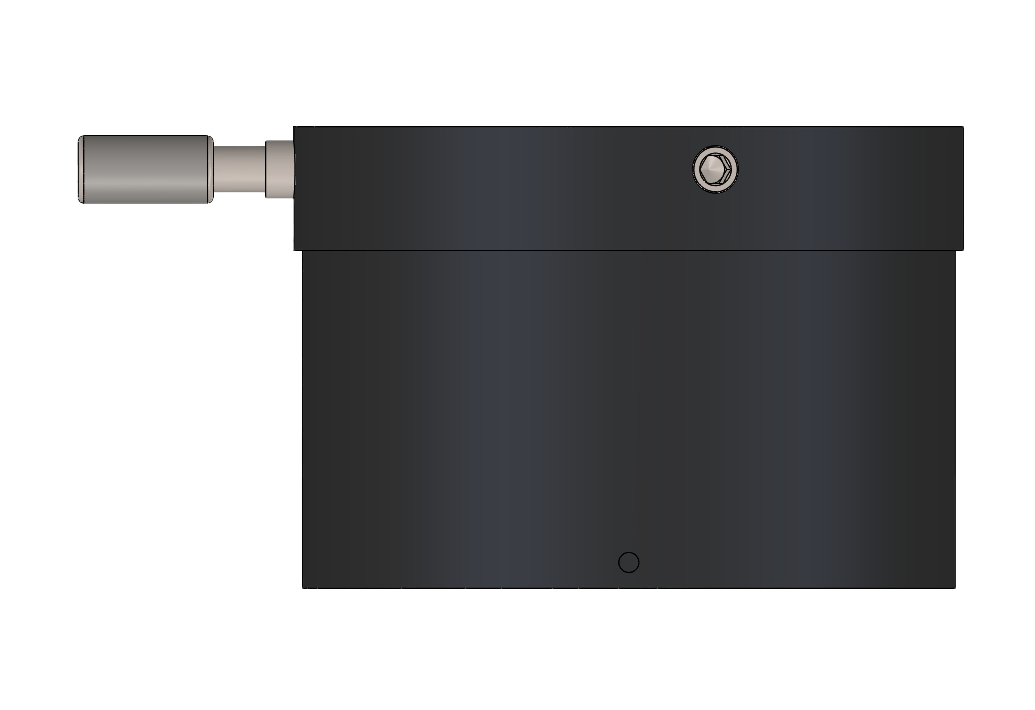

990214	CF-2 Objective (1.52x-2.67x; 192-140mm W.D.)	$1,020.00	CF-2 Objective (1.52x-2.67x; 192-140mm W.D.) quantity

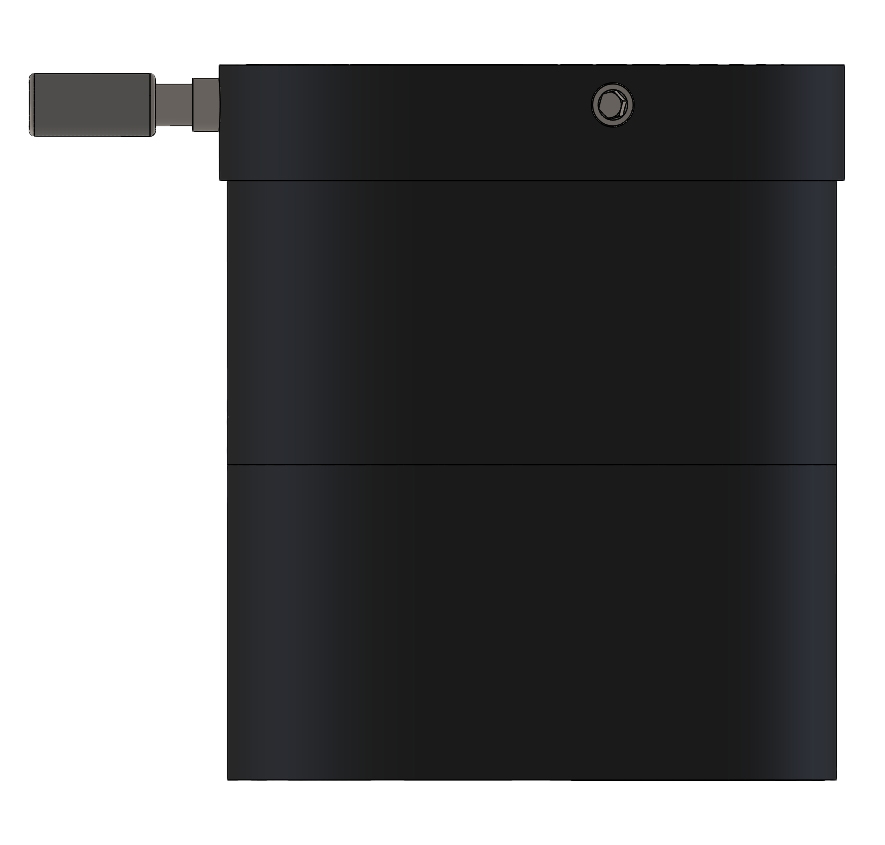

990216	CF-3 Objective (2.29x-3.56x; 122-95mm W.D.)	$1,020.00	CF-3 Objective (2.29x-3.56x; 122-95mm W.D.) quantity
990218	CF-4 Objective (4.57x-6.10x; 64-54mm W.D.)	$895.00	CF-4 Objective (4.57x-6.10x; 64-54mm W.D.) quantity

InFocus™ Microscope Objective Holder and Options

SKU	Name	Price	Buy
990202	Microscope Objective Holder Disc for NWE Objective (requires Objective Adapter for specific brand)	$195.00	Microscope Objective Holder Disc for NWE Objective (requires Objective Adapter for specific brand) quantity
991125	RMS Objective Adapter (use infinity-corrected type)	$90.00	RMS Objective Adapter (use infinity-corrected type) quantity
991130	Achrovid Objective Adapter (M26 thread—also suitable for Mitutoyo)	$90.00	Achrovid Objective Adapter (M26 thread—also suitable for Mitutoyo) quantity
991131	Nikon CFI60 Objective Adapter (M25 thread)	$90.00	Nikon CFI60 Objective Adapter (M25 thread) quantity

NOTE: When the #990202 and #991130 are used without any K2 DistaMax Amplifier insystem, the objective magnification is multiplied by a factor of 1.5x. For example: 10x objective times 1.5x factor = 15x. The result is equivalent to a 15x objective used directly. Accordingly, when the CF Tube is used, the K2 DistaMax factor is 2.5x— the ideal magnification to fill the 35mm format. The result would then be equivalent to a 25x objective.

Achrovid™ Nelsonian™ Objectives (infinity-corrected/f=200mm)

SKU	Name	Price	Buy
210301	Achrovid 2x/Nelsonian® 0.054/ W.D. 37mm	$525.00	Achrovid 2x/Nelsonian® 0.054/ W.D. 37mm quantity
210302	Achrovid 2.5x/Nelsonian® 0.064/ W.D. 37mm	$525.00	Achrovid 2.5x/Nelsonian® 0.064/ W.D. 37mm quantity
210303	Achrovid 3.3x/Nelsonian® 0.077/ W.D. 37mm	$525.00	Achrovid 3.3x/Nelsonian® 0.077/ W.D. 37mm quantity
210304	Achrovid 4x/Nelsonian® 0.09/ W.D. 37mm	$525.00	Achrovid 4x/Nelsonian® 0.09/ W.D. 37mm quantity
210305	Achrovid 5x/Nelsonian® 0.12/ W.D. 37mm	$525.00	Achrovid 5x/Nelsonian® 0.12/ W.D. 37mm quantity
210306	Achrovid 10x/Nelsonian® 0.21/ W.D. 17.50mm	$630.00	Achrovid 10x/Nelsonian® 0.21/ W.D. 17.50mm quantity

Coaxial Illuminator Systems and Accessories

SKU	Name	Price	Buy
991158	Basic Coaxial Illuminator w/ Collector I (for use with low power objectives)	$1,150.00	Basic Coaxial Illuminator w/ Collector I (for use with low power objectives) quantity
991159	Basic Coaxial Illuminator w/ Collector II (for use with objectives 10x and higher)	$1,150.00	Basic Coaxial Illuminator w/ Collector II (for use with objectives 10x and higher) quantity
991167	Polarizing Filter and Retainer	$275.00	Polarizing Filter and Retainer quantity
991170	Collector I (to convert units that have Collector II)	$310.00	Collector I (to convert units that have Collector II) quantity
991172	Collector II (to convert units that have Collector I)	$310.00	Collector II (to convert units that have Collector I) quantity
992258	Basic Coaxial Illuminator w/ LED Flashlight	$1,230.00	Basic Coaxial Illuminator w/ LED Flashlight quantity
992259	Basic Coaxial Illuminator Right Angle w/ LED Flashlight	$1,890.00	Basic Coaxial Illuminator Right Angle w/ LED Flashlight quantity
992270	Collector for LED Flashlight (extra)	$310.00	Collector for LED Flashlight (extra) quantity
992271	LED Flashlight for Coaxial Illuminator	$40.00	LED Flashlight for Coaxial Illuminator quantity
992283	Right Angle Interface for Coaxial Illuminator. Converts Standard into RA Type	$715.00	Right Angle Interface for Coaxial Illuminator. Converts Standard into RA Type quantity

Accessory Components and Tubes

Photo/Video Adapters

Our tubes are calculated so that it is possible to unscrew a T2 adapter and screw on a C-mount video adapter (and vice versa) with no change in parfocality.

SKU	Name	Price	Buy
770507	C-Mount Adapter	$69.00	C-Mount Adapter quantity
770509	Orientable/Separable C-Mount Video Adapter	$550.00	Orientable/Separable C-Mount Video Adapter quantity
770510	Spare C-Mount Top for 770509	$255.00	Spare C-Mount Top for 770509 quantity
770511	Rotatable/Lockable C-mount	$170.00	Rotatable/Lockable C-mount quantity
770513	Beam-splitter C-mount (50/50) for two cameras	$1,150.00	Beam-splitter C-mount (50/50) for two cameras quantity

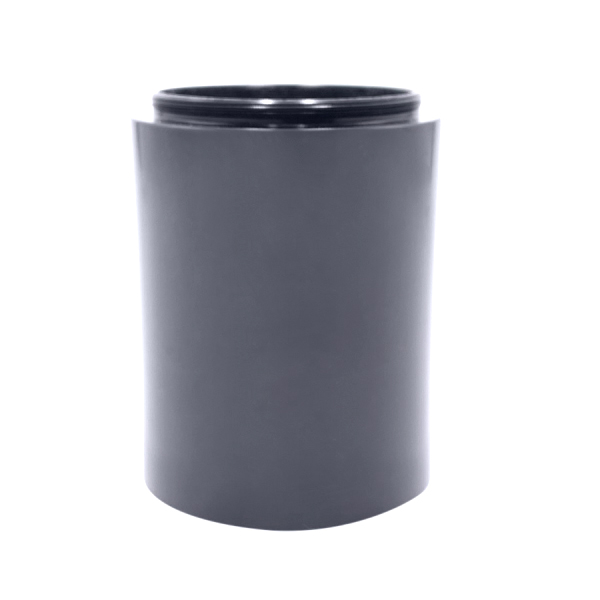

770558	T58 Tube	$69.00	T58 Tube quantity
770565	T2 Adapter — Canon EOS	$35.00	T2 Adapter — Canon EOS quantity
770566	T2 Adapter - Olympus	$35.00	T2 Adapter - Olympus quantity
770568	T2 Adapter — Nikon F Mount	$35.00	T2 Adapter — Nikon F Mount quantity
770571	ArriFlex PL Mount Adapter (with locking screws)	$195.00	ArriFlex PL Mount Adapter (with locking screws) quantity
770572	PL Mount Cap	$50.00	PL Mount Cap quantity
771055	UNIPAR/T30 Adapter with 0.3x optical system. (must be used with eyepiece)	$640.00	UNIPAR/T30 Adapter with 0.3x optical system. (must be used with eyepiece) quantity

Prices and specifications are FOB Centennial, CO and are subject to change without notice.
Model K2, DistaMax, InFocus, Achrovid, and UNIPAR are trademarks of INFINITY PHOTO-OPTICAL COMPANY.
CentriTel is a registered trademark of INFINITY PHOTO-OPTICAL COMPANY.
U.S. Patent 4,988,173. Other U.S. and foreign patents such as U.S. 7,869,139 may also apply. Additional U.S. and foreign patents pending.

SKU	Name	Price	Buy
312517	5x Eyepiece (multi-coated)	$95.00	5x Eyepiece (multi-coated) quantity
312518	10x Widefield Eyepiece with High Eyepoint	$115.00	10x Widefield Eyepiece with High Eyepoint quantity
496062	Tele-Tube (0.5x Video Coupler)	$635.00	Tele-Tube (0.5x Video Coupler) quantity
691616	Adapter for Olympus Stereomicroscope Stands	$175.00	Adapter for Olympus Stereomicroscope Stands quantity
691618	Adapter for Nikon, Olympus, Edmund, Zeiss, and Leica Ø75.75mm Stands	$175.00	Adapter for Nikon, Olympus, Edmund, Zeiss, and Leica Ø75.75mm Stands quantity
691620	Adapter for Unitron Stereomicroscope Stands Ø81.80mm	$175.00	Adapter for Unitron Stereomicroscope Stands Ø81.80mm quantity
691622	Adapter for Meiji Stereomicroscope Stands Ø84mm	$175.00	Adapter for Meiji Stereomicroscope Stands Ø84mm quantity
770170	Large Mounting Clamp	$110.00	Large Mounting Clamp quantity
770171	Mounting Bar	$110.00	Mounting Bar quantity
770175	ROBUSTO™ Mounting Bar (required for ROBUSTO™)	$131.00	ROBUSTO™ Mounting Bar (required for ROBUSTO™) quantity
770524	T24 Tube (24mm spacer)	$73.00	T24 Tube (24mm spacer) quantity
770662	M62 Eyepiece Holder Tube (Does not include Eyepiece)	$120.00	M62 Eyepiece Holder Tube (Does not include Eyepiece) quantity
890177	Mirror Diverter Package. Converts single-port K2 DistaMax or KC VideoMax into a dual-port.	$1,750.00	Mirror Diverter Package. Converts single-port K2 DistaMax or KC VideoMax into a dual-port. quantity
890178	50/50 Beamsplitter Package. Converts single-port K2 DistaMax into a 50/50 dual-port.	$1,750.00	50/50 Beamsplitter Package. Converts single-port K2 DistaMax into a 50/50 dual-port. quantity

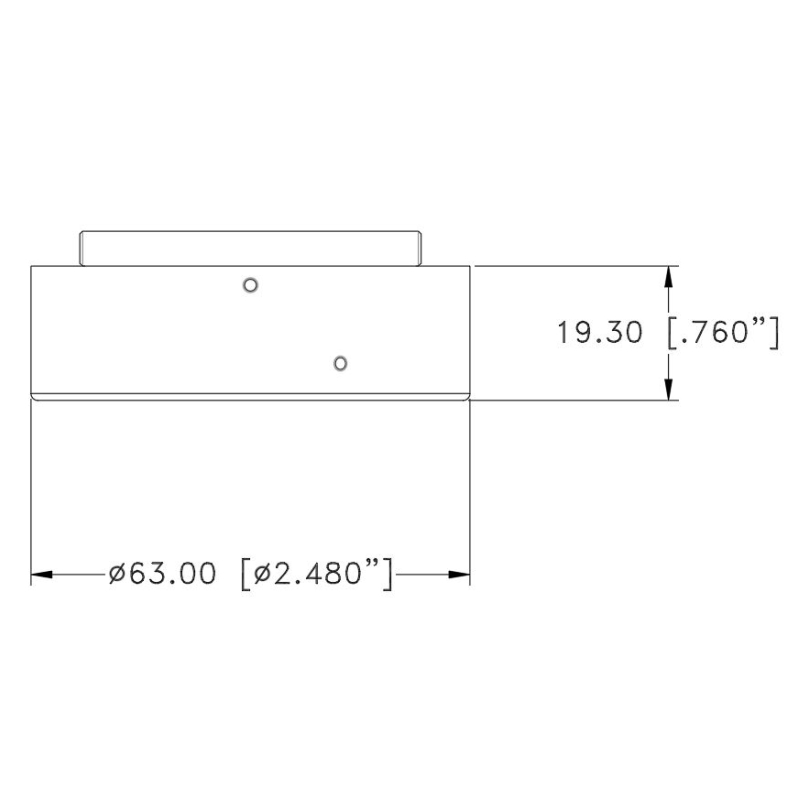

991165	66mm Fiber Optic Ring Light Adapter for K2 DistaMax	$115.00	66mm Fiber Optic Ring Light Adapter for K2 DistaMax quantity
