InfiniTube Standard

Proximity™ Series:

InfiniTube™ Microscope Tube Lens Systems

Standard Series

InfiniTube
Microscope Tube Lens Systems

Suggested List Prices
Effective: October 01, 2024

InfiniTube Standard Order OnlineACCESSORIES
InfiniTube Standard Instruction ManualINSTRUCTIONS
InfiniTube Standard Price GuidePRICE GUIDE

Any questions on products and pricing please contact Infinity

InfiniTube Standard Main Bodies. All InfiniTubes are designed for use with infinity-corrected objectives only and incorporate internal focusing adjustment. InfiniTubes may be used with Infinity Photo-Optical objectives or with Mitutoyo, Nikon or Olympus objectives. Special versions are available for specific use with Zeiss ICS objectives.
Most InfiniTubes can be specially ordered for Near Infrared (NIR) applications. (Please contact us for pricing information)

InfiniTube Standard Main Bodies (supplied w/o Mounting Clamps—please select from Accessories below).

ImageSKUNamePriceBuy
InfiniTube Standard Main Body w/internal focus
210200InfiniTube Standard Main Body w/internal focus$1,025.00
InfiniTube Standard Main Body with Iris Diaphragm and w/internal focus
210203InfiniTube Standard Main Body with Iris Diaphragm and w/internal focus$1,285.00

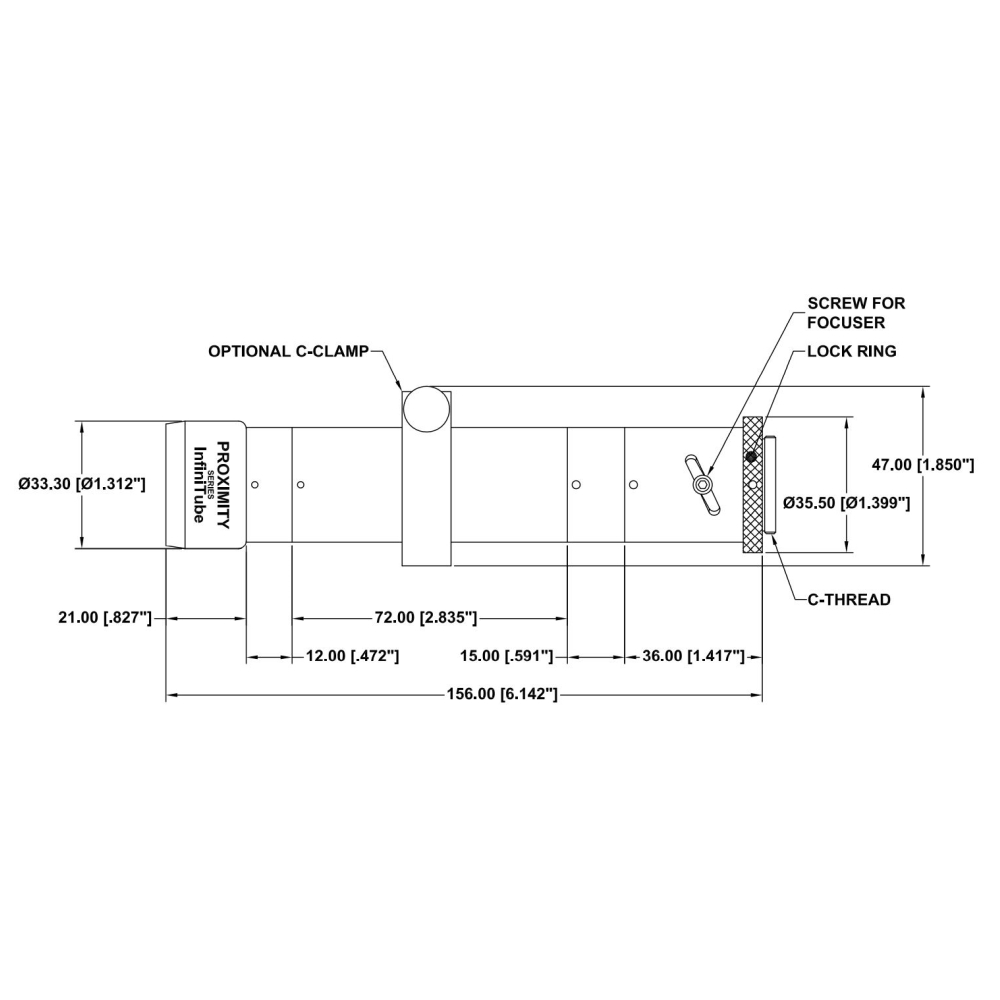

InfiniTube Standard 1.5x Main Body with internal focus
210215InfiniTube Standard 1.5x Main Body with internal focus$1,099.00
InfiniTube Standard 1.5x Main Body w/ Iris Diaphragm & w/internal focus
210216InfiniTube Standard 1.5x Main Body w/ Iris Diaphragm & w/internal focus$1,350.00
InfiniTube Standard RA (Right Angle = 90-degrees) w/internal focus
210202InfiniTube Standard RA (Right Angle = 90-degrees) w/internal focus$2,035.00
InfiniTube Standard Dual-Port w/internal focus
210246InfiniTube Standard Dual-Port w/internal focus$2,275.00
InfiniTube-Z Standard w/internal focus
210244InfiniTube-Z Standard w/internal focus. Compatibly color-corrected (1.25x Factor) for Zeiss ICS objectives ONLY.$1,095.00

Accessories and Adapters

ImageSKUNamePriceBuy
Collector I (to convert units that have Collector II)
991170Collector I (to convert units that have Collector II)$310.00
Collector II (to convert units that have Collector I)
991172Collector II (to convert units that have Collector I)$310.00
Variable Iris Diaphragm
991155Small Variable Iris Diaphragm$255.00
Basic Coaxial Illuminator w/ Collector I (for use with low power objectives)
991158Basic Coaxial Illuminator w/ Collector I (for use with low power objectives)$1,150.00
Basic Coaxial Illuminator w/ Collector II (for use with objectives 10x and higher)
991159Basic Coaxial Illuminator w/ Collector II (for use with objectives 10x and higher)$1,150.00

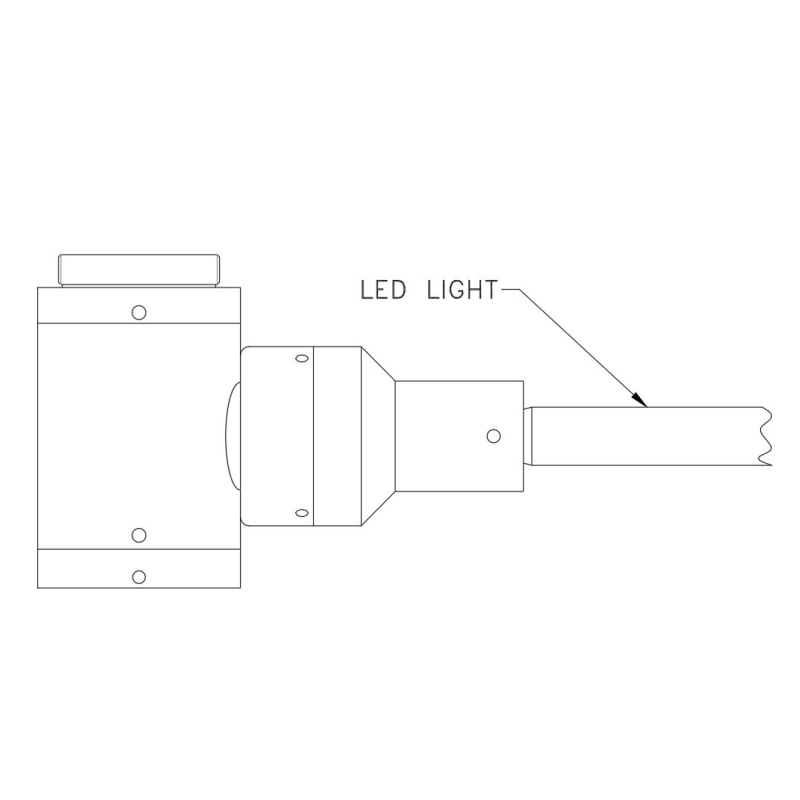

Basic Coaxial Illuminator w/ LED Flashlight
992258Basic Coaxial Illuminator w/ LED Flashlight$1,230.00

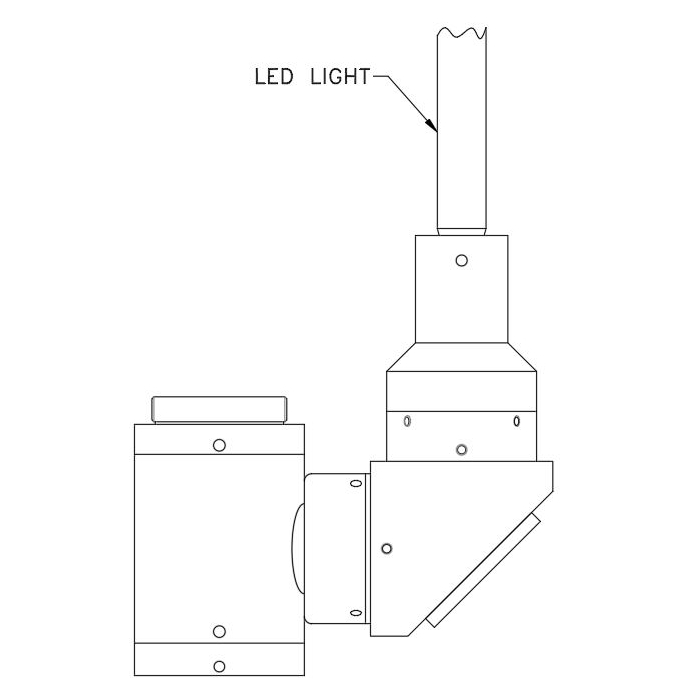

Basic Coaxial Illuminator Right Angle w/ LED Flashlight
992259Basic Coaxial Illuminator Right Angle w/ LED Flashlight$1,890.00
Right Angle Interface for Coaxial Illuminator. Converts Standard into RA Type
992283Right Angle Interface for Coaxial Illuminator. Converts Standard into RA Type$715.00
CS-Mount Spacer (C5). Needed for CS-mount cameras only
670905CS-Mount Spacer (C5). Needed for CS-mount cameras only$37.00

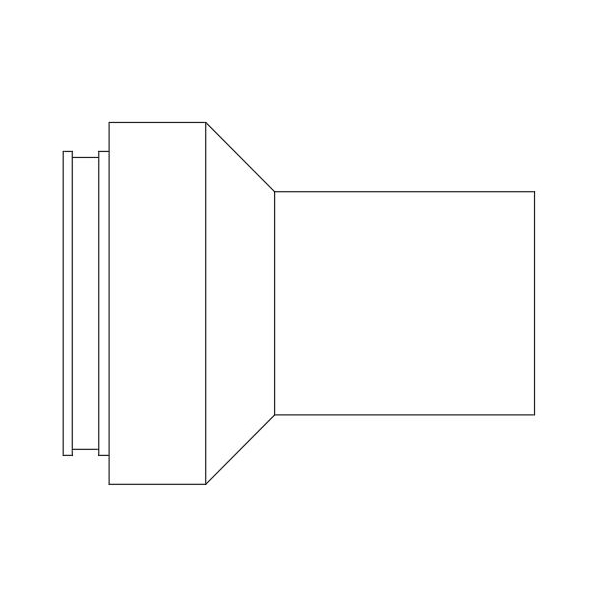

Collector for LED Flashlight (extra)
992270Collector for LED Flashlight (extra)$310.00
LED Flashlight for Coaxial Illuminator
992271LED Flashlight for Coaxial Illuminator$40.00
Polarizing Filter and Retainer
991167Polarizing Filter and Retainer$275.00
Small Mounting Clamp
990170Small Mounting Clamp (useful to secure around objective section)$110.00
Filter Holder/Retainer for 25mm ∅ filters
991152Filter Holder/Retainer for 25mm Æ scientific grade filters$103.00
RMS Objective Adapter (use infinity-corrected type)
991125RMS Objective Adapter (use infinity-corrected type)$90.00
Achrovid Objective Adapter (M26 thread—also suitable for Mitutoyo)
991130Achrovid Objective Adapter (M26 thread—also suitable for Mitutoyo)$90.00
Nikon CFI60 Objective Adapter (M25 thread)
991131Nikon CFI60 Objective Adapter (M25 thread)$90.00

Amplifiers (can be used to alter or increase the InfiniTube magnification)

ImageSKUNamePriceBuy
DL Tube/2x (video only)
690568DL Tube/2x (video only)$255.00
LDL Tube/2x (lockable for camera orientation)
220568LDL Tube/2x (lockable for camera orientation)$360.00
LDS 4x Power Module Amplifier (lockable for camera orientation)
220569LDS 4x Power Module Amplifier (lockable for camera orientation)$435.00

IF-Series Objectives (infinity-corrected)

ImageSKUNamePriceBuy
IF-1 Objective (0.5x; 390mm W.D.)
991102IF-1 Objective (0.5x; 390mm W.D.)$425.00
IF-2 Objective (0.66x; 295mm W.D.)
991104IF-2 Objective (0.66x; 295mm W.D.)$425.00
IF-3 Objective (1.0x; 195mm W.D.)
991106IF-3 Objective (1.0x; 195mm W.D.)$425.00
IF-3.5 Objective (2.0x; 95mm W.D.)
991107IF-3.5 Objective (2.0x; 95mm W.D.)$425.00
IF-4 Objective (2.66x; 70mm W.D.)
991108IF-4 Objective (2.66x; 70mm W.D.)$425.00

Achrovid™ Nelsonian™ Objectives(infinity-corrected/f=200mm)

ImageSKUNamePriceBuy
Achrovid 2x/Nelsonian 0.054/ W.D. 37mm
210301Achrovid 2x/Nelsonian® 0.054/ W.D. 37mm$525.00
Achrovid 2.5x/Nelsonian 0.064/ W.D. 37mm
210302Achrovid 2.5x/Nelsonian® 0.064/ W.D. 37mm$525.00
Achrovid 3.3x/Nelsonian 0.077/ W.D. 37mm
210303Achrovid 3.3x/Nelsonian® 0.077/ W.D. 37mm$525.00
Achrovid 4x/Nelsonian 0.09/ W.D. 37mm
210304Achrovid 4x/Nelsonian® 0.09/ W.D. 37mm$525.00
Achrovid 5x/Nelsonian 0.12/ W.D. 37mm
210305Achrovid 5x/Nelsonian® 0.12/ W.D. 37mm$525.00
Achrovid 10x/Nelsonian 0.21/ W.D. 17.50mm
210306Achrovid 10x/Nelsonian® 0.21/ W.D. 17.50mm$630.00

Prices and specifications are FOB Centennial, CO and are subject to change without notice.
InfiniTube, Achrovid and Nelsonian are trademarks of INFINITY PHOTO-OPTICAL COMPANY.
ICS is a trademark of Carl Zeiss.
