InfiniTube FM - Infinity Photo-Optical Company

Proximity™ Series:

InfiniTube™ VIDEO/MACHINE VISION MICROSCOPES

FM-Series™

InfiniTube
VIDEO/MACHINE VISION MICROSCOPES

Suggested List Prices
Effective: October 01, 2024

ACCESSORIES

INSTRUCTIONS

PRICE GUIDE

Any questions on products and pricing please contact Infinity

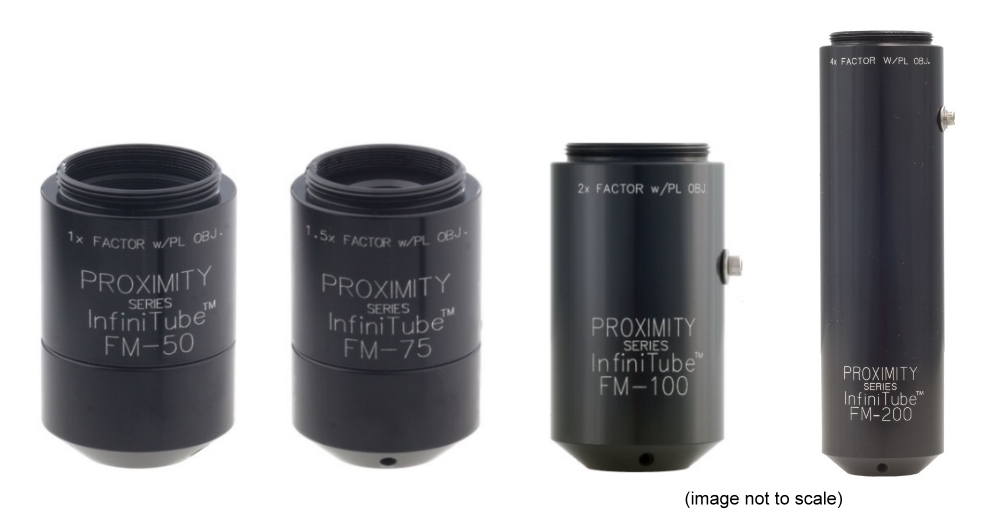

InfiniTube FM-Series Main Bodies. All InfiniTube FM-Series Main Bodies are designed for use with infinity-corrected objectives only. All FM-Series InfiniTubes incorporate Internal Focusing Capability adjustments and may be used with Infinity Photo-Optical objectives or with Mitutoyo, Nikon or Olympus objectives. The FM-100 is designed for very small camera sensors (e.g., 1/4-in.) or for use with a DL 2x Amplifier, thereby constructing a compact 200 mm standard power system. The FM 200 is the choice for direct use with all objectives at standard microscopical magnifications. When used with equivalent of 200mm, the FM-Series covers up to 2/3-in. sensors.

The PL-Series Objectives (see below) provide extraordinary images at lower cost than traditional microscope objectives. When used with PL-Series Objectives, the FM-50 has a 1x factor, the FM-75 has a 1.5x factor, the FM-100 has a 2x factor and the FM-200 has a 4x factor. In such cases, the engraved magnification of the PL Objective is multiplied by those respective factors.

Please select the Main Body most appropriate to your needs.

SKU	Name	Price	Buy
210235	InfiniTube FM-50 Main Body	$715.00	InfiniTube FM-50 Main Body quantity
210237	InfiniTube FM-75 Main Body	$775.00	InfiniTube FM-75 Main Body quantity
210220	InfiniTube FM-100 Main Body w/internal focus	$775.00	InfiniTube FM-100 Main Body w/internal focus quantity
210222	InfiniTube FM-200 Main Body w/internal focus	$775.00	InfiniTube FM-200 Main Body w/internal focus quantity

Accessories and Adapters

PL-Series Objectives (NO Adapter required—attach directly to FM-Series Main Body)

SKU	Name	Price	Buy
224114	PL-14mm W.D. (2.50x w/FM-50; 3.75x w/FM-75; 5.00x w/FM-100; 10.00x w/FM-200)	$385.00	PL-14mm W.D. (2.50x w/FM-50; 3.75x w/FM-75; 5.00x w/FM-100; 10.00x w/FM-200) quantity
224118	PL-18mm W.D. (2.00x w/FM-50; 3.00x w/FM-75; 4.00x w/FM-100; 8.00x w/FM-200)	$259.00	PL-18mm W.D. (2.00x w/FM-50; 3.00x w/FM-75; 4.00x w/FM-100; 8.00x w/FM-200) quantity
224018	PL-18mm W.D./2.00x Ultra-short Mount for 90-degree models	$259.00	PL-18mm W.D./2.00x Ultra-short Mount for 90-degree models quantity
224135	PL-35mm W.D. (1.25x w/FM-50; 1.875x w/FM-75; 2.50x w/FM-100; 5.00x w/FM-200)	$259.00	PL-35mm W.D. (1.25x w/FM-50; 1.875x w/FM-75; 2.50x w/FM-100; 5.00x w/FM-200) quantity
224144	PL-44mm W.D. (1.00x w/FM-50; 1.50x w/FM-75; 2.00x w/FM-100; 4.00x w/FM-200)	$259.00	PL-44mm W.D. (1.00x w/FM-50; 1.50x w/FM-75; 2.00x w/FM-100; 4.00x w/FM-200) quantity
224044	PL-44mm W.D./1.00x Ultra-short Mount for Right Angle Front (991163)	$259.00	PL-44mm W.D./1.00x Ultra-short Mount for Right Angle Front (991163) quantity

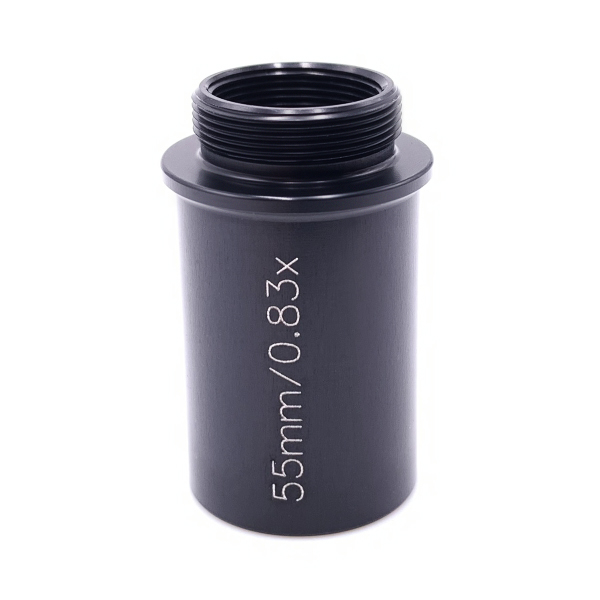

224155	PL-55mm W.D. (0.83x w/FM-50; 1.25x w/FM-75; 1.65x w/FM-100; 3.3x w/FM-200)	$259.00	PL-55mm W.D. (0.83x w/FM-50; 1.25x w/FM-75; 1.65x w/FM-100; 3.3x w/FM-200) quantity

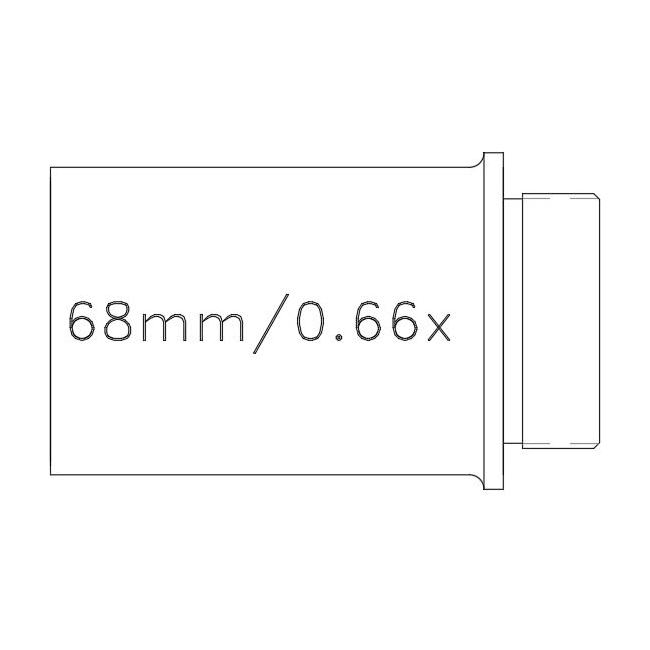

224168	PL-68mm W.D. (0.66x w/FM-50; 1.00x w/FM-75; 1.33x w/FM-100; 2.66x w/FM-200)	$259.00	PL-68mm W.D. (0.66x w/FM-50; 1.00x w/FM-75; 1.33x w/FM-100; 2.66x w/FM-200) quantity
224068	PL-68mm W.D./0.66x Ultra-short Mount for Right Angle Front (991163)	$259.00	PL-68mm W.D./0.66x Ultra-short Mount for Right Angle Front (991163) quantity
224194	PL-94mm W.D. (0.50x w/FM-50; 0.75x w/FM-75; 1.00x w/FM-100; 2.00x w/FM-200)	$259.00	PL-94mm W.D. (0.50x w/FM-50; 0.75x w/FM-75; 1.00x w/FM-100; 2.00x w/FM-200) quantity

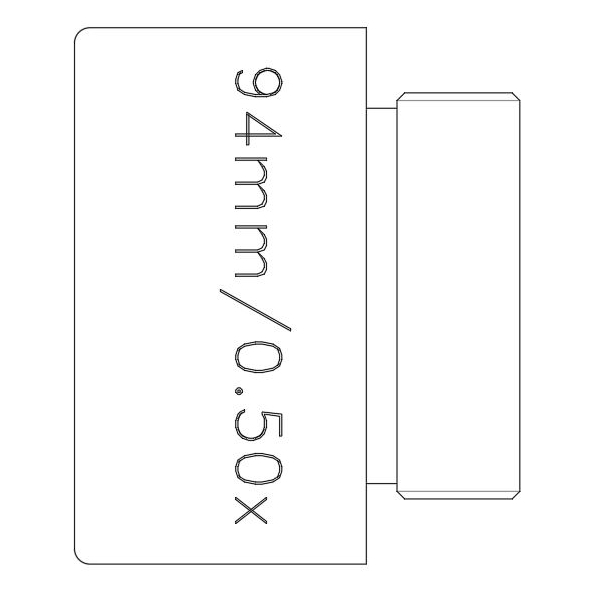

224094	PL-94mm W.D./0.50x Ultra-short Mount for Right Angle Front (991163)	$259.00	PL-94mm W.D./0.50x Ultra-short Mount for Right Angle Front (991163) quantity

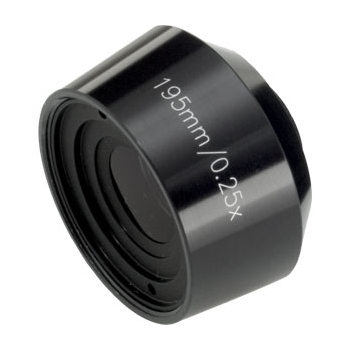

210195	PL/FD-195mm W.D. (0.25x w/FM-50; 0.375x w/FM-75; 0.50x w/FM-100; 1.00x w/FM-200)	$389.00	PL/FD-195mm W.D. (0.25x w/FM-50; 0.375x w/FM-75; 0.50x w/FM-100; 1.00x w/FM-200) quantity
210295	PL/FD-295mm W.D. (0.167x w/FM-50; 0.25x w/FM-75; 0.33x w/FM-100; 0.66x w/FM-200)	$389.00	PL/FD-295mm W.D. (0.167x w/FM-50; 0.25x w/FM-75; 0.33x w/FM-100; 0.66x w/FM-200) quantity
210390	PL/FD-390mm W.D. (0.125x w/FM-50; 0.188x w/FM-75; 0.25x w/FM-100; 0.50x w/FM-200)	$389.00	PL/FD-390mm W.D. (0.125x w/FM-50; 0.188x w/FM-75; 0.25x w/FM-100; 0.50x w/FM-200) quantity

Achrovid™ Nelsonian™ Objectives (infinity-corrected/f=200mm)—#991127 Adapter or
#991147 Adapter for 2x Objective required.

SKU	Name	Price	Buy
210301	Achrovid 2x/Nelsonian® 0.054/ W.D. 37mm	$525.00	Achrovid 2x/Nelsonian® 0.054/ W.D. 37mm quantity
210302	Achrovid 2.5x/Nelsonian® 0.064/ W.D. 37mm	$525.00	Achrovid 2.5x/Nelsonian® 0.064/ W.D. 37mm quantity
210303	Achrovid 3.3x/Nelsonian® 0.077/ W.D. 37mm	$525.00	Achrovid 3.3x/Nelsonian® 0.077/ W.D. 37mm quantity
210304	Achrovid 4x/Nelsonian® 0.09/ W.D. 37mm	$525.00	Achrovid 4x/Nelsonian® 0.09/ W.D. 37mm quantity
210305	Achrovid 5x/Nelsonian® 0.12/ W.D. 37mm	$525.00	Achrovid 5x/Nelsonian® 0.12/ W.D. 37mm quantity
210306	Achrovid 10x/Nelsonian® 0.21/ W.D. 17.50mm	$630.00	Achrovid 10x/Nelsonian® 0.21/ W.D. 17.50mm quantity

Amplifiers

SKU	Name	Price	Buy
690568	DL Tube/2x (video only)	$255.00	DL Tube/2x (video only) quantity
220568	LDL Tube/2x (lockable for camera orientation)	$360.00	LDL Tube/2x (lockable for camera orientation) quantity
220569	LDS 4x Power Module Amplifier (lockable for camera orientation)	$435.00	LDS 4x Power Module Amplifier (lockable for camera orientation) quantity

Prices and specifications are FOB Centennial, CO and are subject to change without notice.
InfiniTube, FM-Series, In-Line Assembly, In-Line System, Achrovid and Nelsonian are trademarks of INFINITY
PHOTO-OPTICAL COMPANY.

SKU	Name	Price	Buy

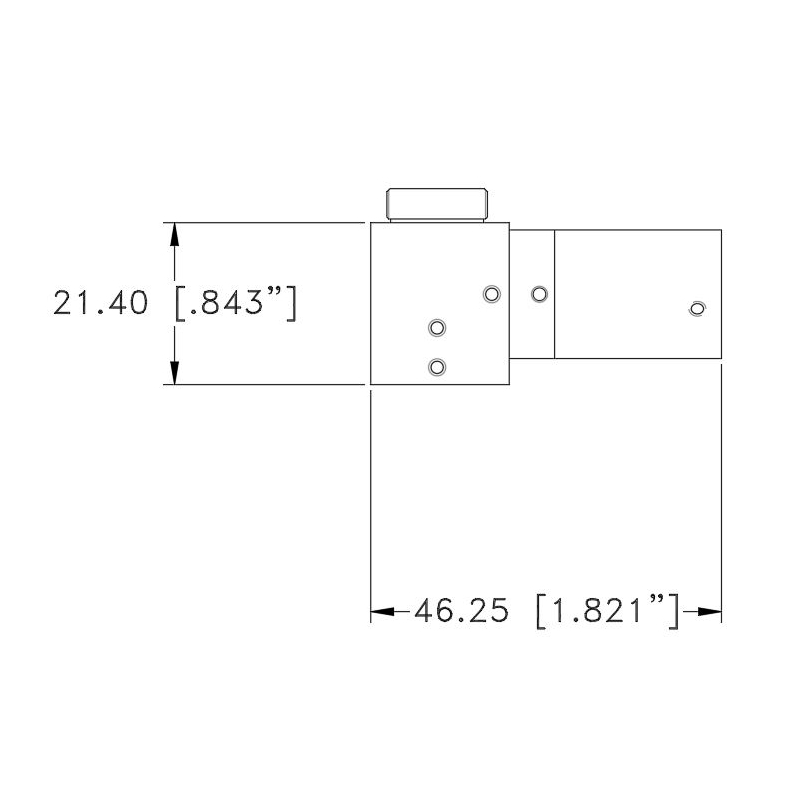

991168	Mini Coaxial Illuminator w/LM Collector. (for use with objectives up to 10x)	$775.00	Mini Coaxial Illuminator w/LM Collector. (for use with objectives up to 10x) quantity

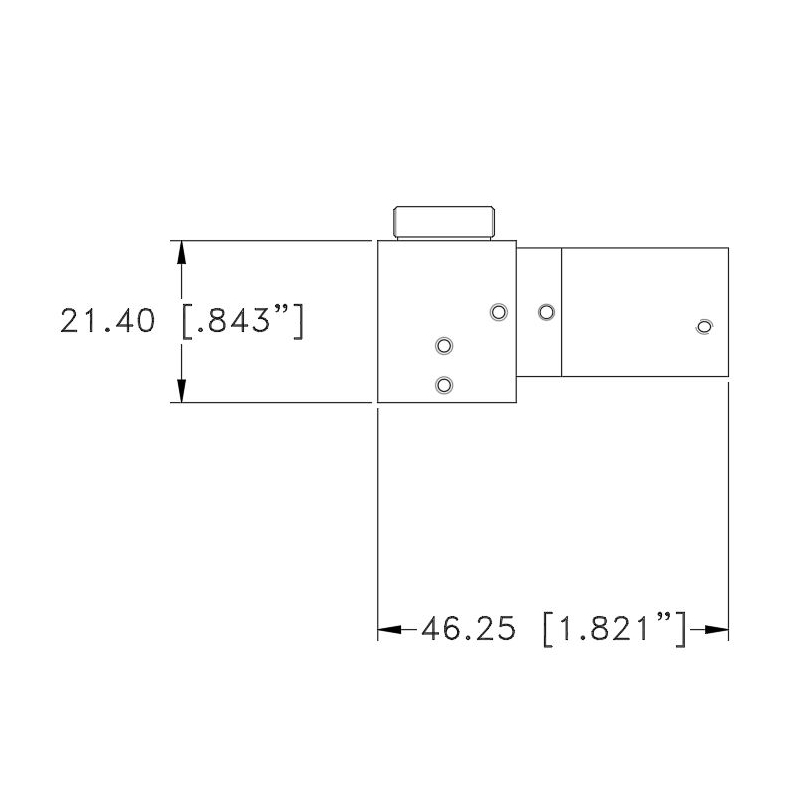

991169	Mini Coaxial Illuminator w/ HM Collector. (for use with objectives 10x and higher)	$775.00	Mini Coaxial Illuminator w/ HM Collector. (for use with objectives 10x and higher) quantity

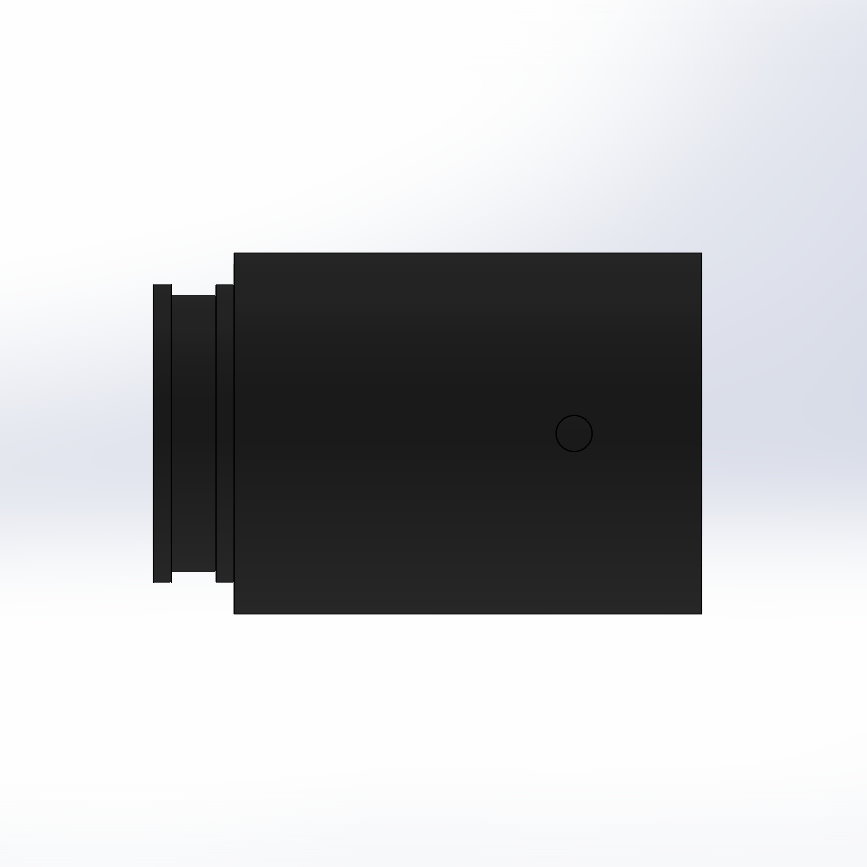

991173	LM Collector (for use with up to objectives 10x)	$135.00	LM Collector (for use with up to objectives 10x) quantity

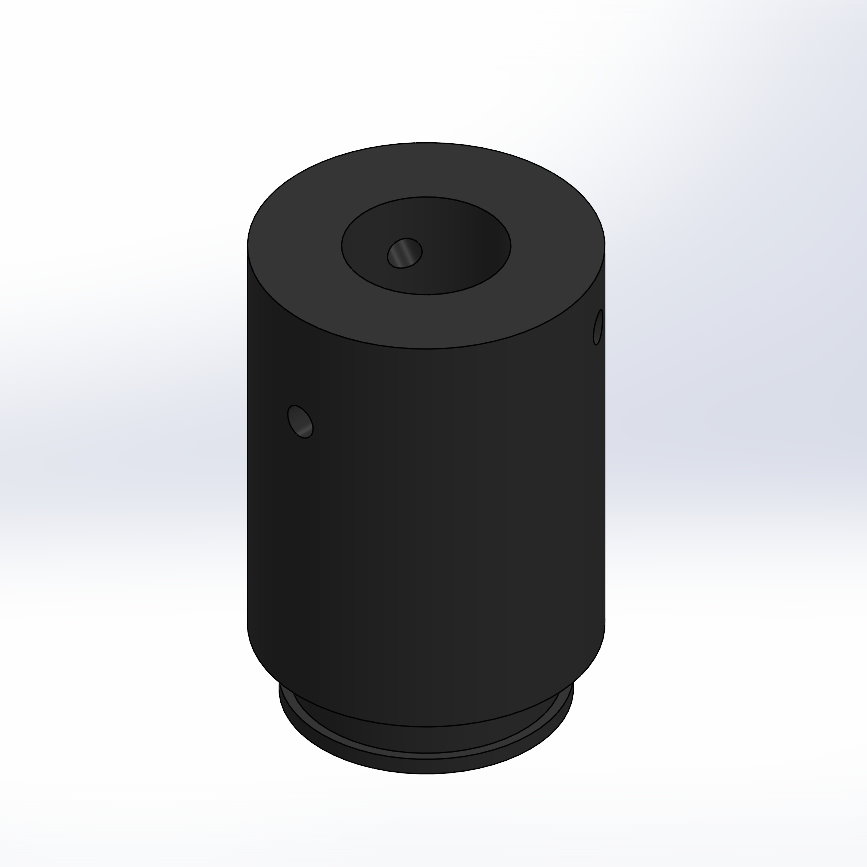

991174	HM Collector (for use with objectives 10x and higher)	$135.00	HM Collector (for use with objectives 10x and higher) quantity

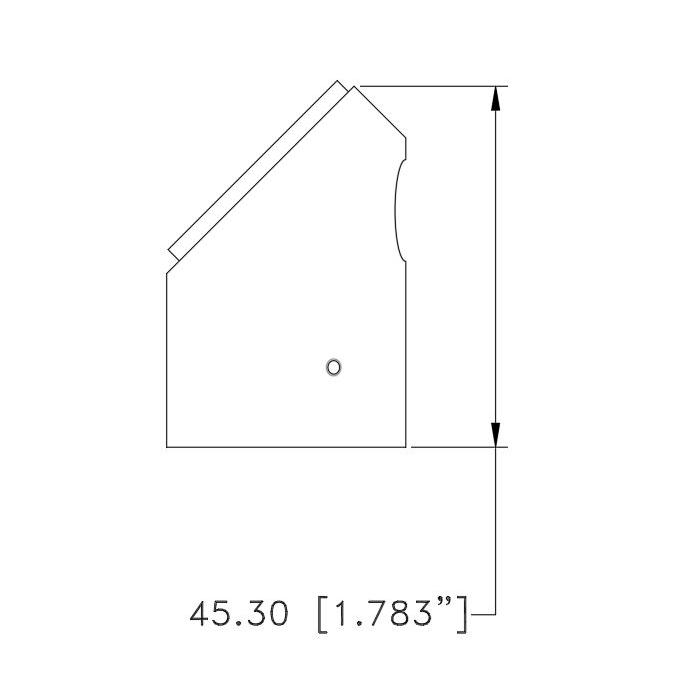

991164	991164 Right Angle Front (for use w/PL Ultra Short Objective)	$755.00	991164 Right Angle Front (for use w/PL Ultra Short Objective) quantity

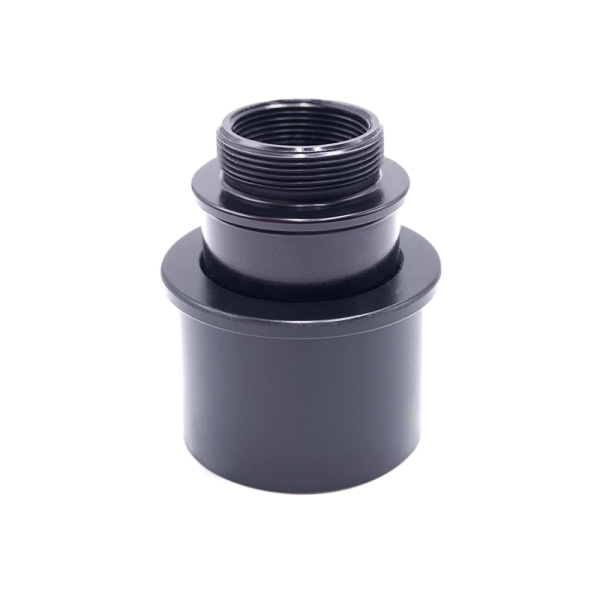

224000	Connector for 991164 and Mini Coaxial Illuminator. Allows 90° use of InfiniTube FM with Coaxial Illumination.	$75.00	Connector for 991164 and Mini Coaxial Illuminator. Allows 90° use of InfiniTube FM with Coaxial Illumination. quantity
670905	CS-Mount Spacer (C5). Needed for CS-mount cameras only	$37.00	CS-Mount Spacer (C5). Needed for CS-mount cameras only quantity
991127	Achrovid Objective Adapter (also suitable for Mitutoyo)	$103.00	Achrovid Objective Adapter (also suitable for Mitutoyo) quantity

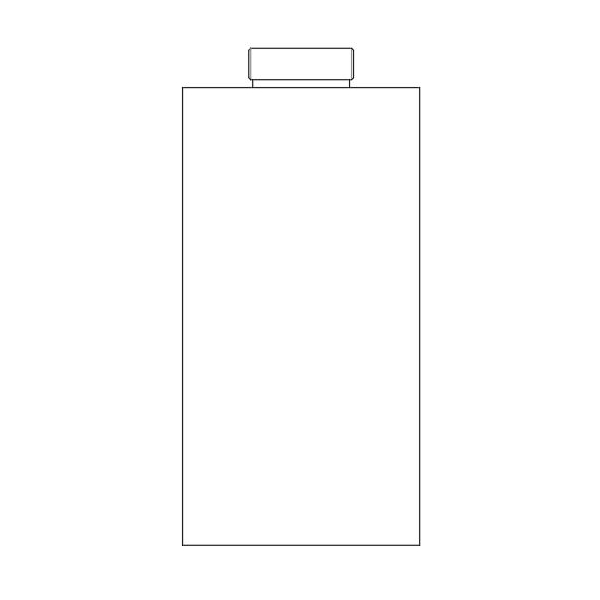

991147	Achrovid Objective Long Mount Adapter (also suitable for Mitutoyo) — Primarily for use with 2x Objectives	$103.00	Achrovid Objective Long Mount Adapter (also suitable for Mitutoyo) — Primarily for use with 2x Objectives quantity
991128	RMS Objective Adapter (e.g., Olympus)	$103.00	RMS Objective Adapter (e.g., Olympus) quantity
991129	Nikon CFI60 Objective Adapter	$103.00	Nikon CFI60 Objective Adapter quantity
990170	Small Mounting Clamp (useful to secure around objective section)	$110.00	Small Mounting Clamp (useful to secure around objective section) quantity
770170	Large Mounting Clamp	$110.00	Large Mounting Clamp quantity
770171	Mounting Bar	$110.00	Mounting Bar quantity
860200	Delrin Spacer. (Used with Large Mounting Clamp to Step-up from C-size Tube to T-size Tube)	$45.00	Delrin Spacer. (Used with Large Mounting Clamp to Step-up from C-size Tube to T-size Tube) quantity
